Gilson 8in Sieve, All Brass, Full Height, No. 230

Gilson 8in Sieve, All Brass, Full Height, No. 230

Our high-quality testing sieves are designed for precision, durability, and a perfect fit. Each ASTM Test Sieve comes with a Certificate of Compliance, guaranteeing accuracy and reliability.

The 8" Full Height Sieves feature a total height of 2 5/8 inches, with a 2-inch depth measured from the mesh surface to the top of the frame.

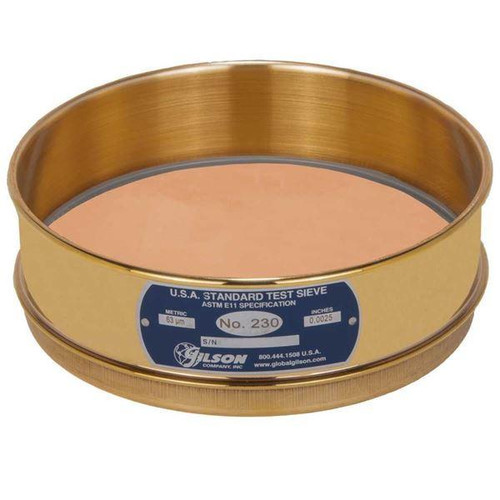

This 8-inch (203mm) diameter ASTM E11 Test Sieve includes a full-height brass frame and woven-wire cloth with No. 230 (63µm) mesh openings. The overall height is 2-5/8 inches, and the stacked height measures 2-1/8 inches.

Features:

• Individually serial numbered
• Compliant with ASTM E11 requirements for Compliance Sieves

Included Items:

• 8” Sieve, All Brass, Full Height, No. 230
• Certificate of Conformance to ASTM E11 requirements

Accessories:

• Sieve Pans - nest underneath sieves to collect fines
• Sieve Covers - prevent sample loss during agitation
• Verification Services - provide NIST traceable documentation of opening sizes

Sieve Specifications

• Sieve Frame Diameter: 8in (203mm)
• Frame Height: Full Height
• Stacked Frame Height: 2-1/8in
• Overall Frame Height: 2-5/8in
• Material: Brass Frame / Brass Cloth
• ASTM E11 Opening Size: No.230 (63µm)
• Backing Cloth Included: No
• Estimated Shipping Weight: 2.0lb (0.91kg)
