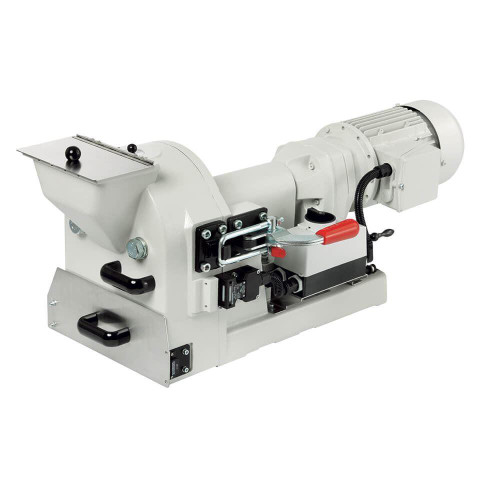

Fritsch Classic Disk Mill: Precision Grinding for Demanding Applications

The Fritsch Disk Mill is engineered for efficient and reproducible size reduction of a wide range of hard-brittle to medium-hard solids. Designed for both laboratory and industrial settings, it excels in preparing samples for analysis or processing larger quantities of material with consistent results.

How it Works: The Principle of Pressure and Shearing At the heart of the Classic Disk Mill's performance is its robust grinding mechanism. Material is introduced between two counter-rotating grinding disks: one fixed and one movable. These disks are equipped with interlocking teeth that apply immense pressure and shearing forces. As the material passes through the precisely set grinding gap, it is progressively reduced in size, ensuring a homogeneous final fineness. The ground material then falls into a conveniently located collection drawer.

Key Features and Benefits:

• Exceptional Versatility: Capable of handling a diverse array of materials, from ceramics and construction aggregates to ores, glass, and soil samples.
• High Throughput & Fineness: Processes up to 150 kg/h with a maximum feed size of 20 mm, achieving a final fineness between 0.1 mm and 12 mm.
• Reproducible Results: The motor-driven grinding gap adjustment, accurate to 0.1 mm, ensures precise control and highly reproducible outcomes for consistent sample preparation.
• User-Friendly Design:
  • Easy Operation: Features a large, removable plastic funnel for optimized material feeding and a straightforward multilingual control display.
  • Effortless Cleaning: The grinding chamber offers complete accessibility, allowing for quick, residue-free cleaning and easy disk changes.
  • Enhanced Safety: A central tension lock for the grinding chamber ensures safe operation at all times.
• Extended Grinding Disk Lifespan: The unit intelligently compensates for abrasion by allowing for the reversal of the grinding disk's rotational direction, significantly extending the service life of your grinding elements.
• Batchwise or Continuous Operation: Adaptable to various workflows, whether you need to process individual batches or run continuous operations.

Technical Specifications:

• Maximum Feed Size: Up to 20 mm
• Minimum Sample Quantity: 20–30 mL
• Maximum Throughput: Up to 150 kg/h
• Final Fineness: 0.1–12 mm (digitally adjustable grinding gap)
• Rotational Speed: 440 rpm
• Grinding Elements: Fixed grinding disk and movable grinding disks (purchased separately, available in various materials to suit specific applications)
• Electrical Requirements: 200V, 60Hz
• Product Dimensions (WxDxH): 17.3 x 34.3 x 15.7 inches (439.4 x 871.2 x 398.8 mm)

The Fritsch Classic Disk Mill stands as a reliable, powerful, and precise solution for professionals requiring efficient and accurate sample preparation across numerous scientific and industrial disciplines.
