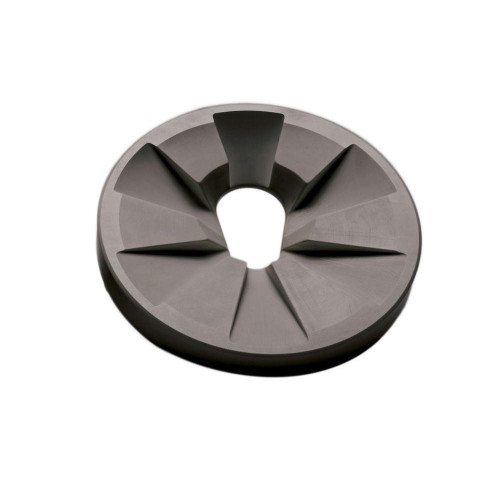

Fixed Grinding Disk, Hardened Steel Cast (200mm)

Fixed Grinding Disk, Hardened Steel Cast (200mm)

Elevate your sample preparation with the Fritsch Grinding Disk, meticulously crafted from hardened steel cast. Designed for optimal performance within the Fritsch Disk Mill, this 200mm diameter disk is essential for processing hard, brittle materials with precision and efficiency.

In the Fritsch Disk Mill, one fixed and one movable grinding disk work in tandem, creating a powerful comminution zone. As the movable disk rotates at high speed against the stationary fixed disk, samples are subjected to intense pressure, shearing, and friction, ensuring thorough and consistent size reduction. For best results and to prevent contamination, it is generally recommended to use grinding disks of the same material for both the fixed and movable positions. Furthermore, the disk material selected must always possess greater hardness than the sample being ground to achieve effective comminution.

This hardened steel cast disk is specifically engineered for robust applications, making it an ideal choice for a wide range of inorganic and organic samples including minerals, ores, glass, ceramics, and construction materials.

A key feature for maximizing operational longevity is the ability to extend the service life of these grinding disks. The Fritsch Disk Mill's maintenance-free geared motor allows for a simple change in the rotation direction, ensuring even wear across the disk surfaces and reducing the frequency of replacements.

Key Features:

• Optimized for Hard & Brittle Samples: Superior performance on materials like minerals, glass, and ceramics.
• Precision Manufacturing: Constructed from durable hardened steel cast for reliable, consistent grinding.
• Enhanced Longevity: Service life significantly extended through adjustable rotational direction of the mill's motor, promoting uniform wear.
• Versatile Material Options: A wide selection of disk materials are available (e.g., tungsten carbide, zirconium oxide) to suit diverse sample types and application requirements.
• Integral Component: Designed as a critical part of the Fritsch Disk Mill system for effective particle size reduction.

Specifications:

• Style: Fixed Disk
• Material: Hardened Steel Cast
• Diameter: 200mm
• Compatibility: Fritsch Disk Mills (e.g., Pulverisette 13 classic line, Pulverisette 13 premium line)
