Digital Multimeter with True RMS and Dual Display

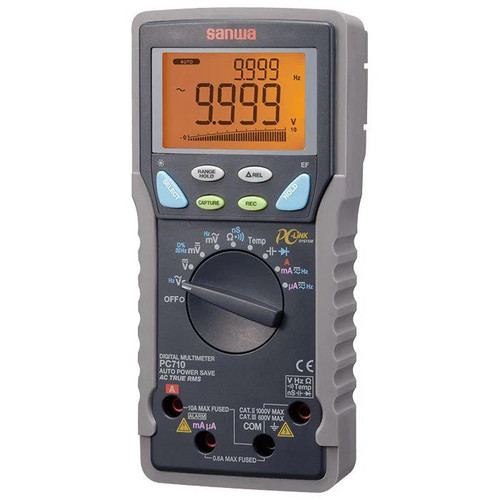

Sanwa PC710: The Ultimate True RMS Digital Multimeter with Dual Display

Elevate your precision with the Sanwa PC710, a top-tier True RMS digital multimeter engineered for accuracy and versatility. Perfect for electronics professionals, field technicians, and advanced DIY enthusiasts, this device delivers unparalleled performance for diagnosing circuits, troubleshooting appliances, and ensuring electrical safety.

The PC710 stands out in Sanwa's acclaimed PC7xx series, boasting an exceptional 0.06% best accuracy and a unique electric field detection capability. Designed for a wide range of applications, from low-power circuit analysis to home appliance diagnostics and industrial power outlets, it’s the ultimate tool for reliable measurements.

Key Features & Benefits:

• True RMS for Unrivaled Accuracy: Get precise readings on both sinusoidal and non-sinusoidal AC waveforms, crucial for modern electronics with complex signals. With 9999 counts in AC mode and 6000 counts in DC mode, you'll capture even the most subtle variations.
• Intuitive Dual Display with Backlight: Simultaneously monitor voltage, current, and frequency, or view AC/DC components with ease. The clear, backlit display ensures readability in any environment.
• Electric Field (EF) Detection: A unique advantage, this feature allows you to detect live power lines and potential hazards without direct contact, enhancing safety and efficiency.
• Comprehensive Measurement Capabilities: Measure DCV, ACV, DCA, ACA, Resistance, Conductance, Capacitance, Frequency, Logic Frequency, and Duty Cycle. The included K-type thermocouple enables temperature measurements from -50℃ to 1000℃.
• Smart Functions for Efficiency:
  • Auto Range: Automatically selects the optimal measurement range, simplifying operation.
  • MAX/MIN/AVG Hold: Capture peak, lowest, and average values for thorough analysis.
  • Data Hold & Range Hold: Freeze readings on screen or lock a specific range for consistent testing.
  • Relative Value: Measure changes against a reference point.
  • Auto Power Save: Conserves battery life, with an option to disable.
• Robust & Safe Design: Built to IEC61010 standards with CAT.III 600V / CAT.II 1000V safety ratings, ensuring protection in demanding electrical environments. Includes a durable rubber holster with a wall hanger and lead holder, plus a tilt kickstand for hands-free use.
• PC Link System (Optional): Extend your capabilities by connecting the PC710 to your computer using the optional KB-USB7 optical Link USB cable and PC Link 7 software. Log readings automatically to CSV files, perfect for data analysis of varying input voltages.

What's Included: The Sanwa PC710 comes complete with the multimeter, a protective rubber holster, a detailed instruction manual, and one set of high-quality test leads, ensuring you're ready to tackle any project right out of the box.

Technical Specifications (Summary):

• Display: 9999 & 6000 counts, 41-segment bar graph
• Sampling Rate: 5 times/sec (numeral), 60 times/sec (bar graph)
• Accuracy: DCV ±(0.06%+2), ACV ±(0.5%+3), DCA ±(0.2%+4), ACA ±(0.6%+3), Resistance ±(0.1%+3)
• Bandwidth: V: 40Hz-20kHz, A: 40Hz-1kHz
• Battery: 6F22 (9V) x1, approx. 60h life
• Dimensions/Mass: H184×W86×D52mm / Approx. 430g (including holster)

Experience the blend of advanced features, superior accuracy, and user-friendly design with the Sanwa PC710 – your reliable partner for all electrical measurements.
