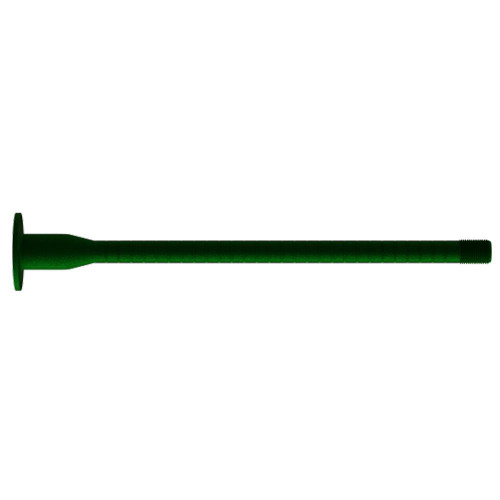

D101A - Straight Dowel Bar Splicer
Accessories
Dayton
The Dayton Superior Dowel Bar Splicer is a one-piece unit, integrally forged from ASTM A615 grade 60 deformed rebar material. The splicers are available in #4 through #11 rebar sizes to be used in conjunction with the corresponding size dowel-in to accomplish a mechanical splice designed to achieve 160% of specified yield (full mechanical ultimate). The splicer can be furnished straight (D101A) cut to length, 90° and 180° hooked (D102A and D103A) and double-ended (D104A) in plain or epoxy coated finish. The splicer can also be special-ordered with a reduced diameter washer flange or with the washer flange clipped (in more than one direction, if required) to provide adequate concrete cover, or to avoid interference. The D104A Double-Ended Dowel Bar Splicer is used to establish a direct load path through a concrete section, thus avoiding multiple hooked rebar and eliminating rebar congestion. The double-ended unit can be configured in a “U” shape for special applications.
The D101A comes in a straight configuration, although variations such as 90° and 180° hooks (models D102A and D103A) and double-ended splicers (D104A) are also available, providing versatility to meet diverse structural requirements. Its plain or epoxy-coated finish enhances resistance to corrosive environments, making it suitable for both standard and specialized applications. With options for customized configurations, including reduced diameter washer flanges and clipped flanges, adapting to unique design constraints or ensuring sufficient concrete cover is straightforward.
The D104A Double-Ended Dowel Bar Splicer further streamlines construction processes by establishing a direct load path through concrete sections, eliminating the need for multiple hooked rebar and significantly reducing congestion within reinforced areas. This innovative design also allows for “U” shape configurations for specific applications, ensuring maximum efficiency and structural integrity.
In a world where quality and reliability are paramount, the Dayton D101A Dowel Bar Splicer stands as a cornerstone for effective concrete reinforcement, delivering solutions that enhance both safety and performance in every build. Trust in Dayton for engineering excellence that goes beyond standards.
