Datalogging Manometer with NIST-Traceable Certificate, 5 PSI

Datalogging Manometer with NIST Certification, 5 PSI

Precision Pressure Measurement for Demanding Professional Applications

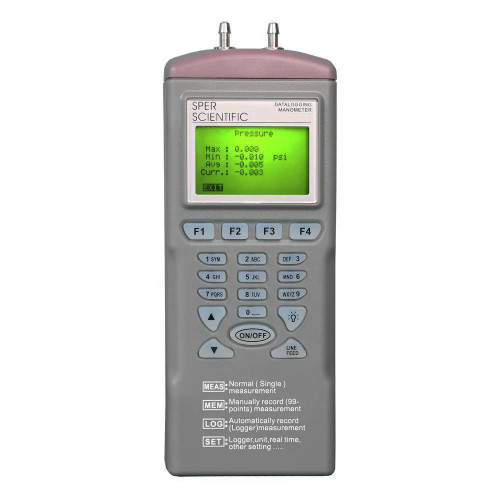

The Datalogging Manometer is an advanced, portable instrument engineered for highly accurate low differential pressure measurement across a wide array of professional and industrial sectors. This device redefines efficiency by allowing you to automatically log up to an impressive 12,000 pressure readings, each meticulously time-stamped, ensuring a complete historical record. These logs can be effortlessly downloaded to your computer via USB for in-depth analysis, trend identification, and comprehensive reporting. For immediate reference, you can also manually record and review up to 99 individual readings directly on the meter’s intuitive display.

Key Features Designed for Professionals:

• Intuitive User Interface: Navigate complex measurements with ease thanks to a straightforward menu system and a crisp, backlit dot matrix display, ensuring readability in all lighting conditions, from dimly lit control rooms to bright outdoor environments.
• Intelligent Power Management: An auto power-off function maximizes battery life, ensuring your device is ready when you are. The low battery indicator provides timely alerts to prevent interruptions during critical measurements.
• Versatile Mounting Options: Equipped with a ¼"-20 UNC screw mount, the manometer can be securely attached to any standard tripod, making it ideal for continuous monitoring in fixed positions or hands-free operation.
• Comprehensive Pressure Measurement: Measures both gauge and differential pressure with high precision. It supports 11 selectable units of measurement (PSI, In H₂O, kPa, Ft H₂O, In Hg, Cm H₂O, mbar, Bar, mm Hg, Oz/In², Kg/cm²), offering unparalleled adaptability for diverse application requirements.
• Min/Max/Avg Recording: Capture peak pressure fluctuations or average readings over time, providing critical data for system diagnostics and performance analysis.
• Data Hold Function: Freeze the current reading on the display for easy recording and observation, especially useful in fluctuating environments.
• Zero Adjustment: Simple one-button zeroing capability ensures consistent accuracy before each measurement.

Essential for a Broad Range of Applications:

This robust and versatile manometer is an indispensable tool for professionals in sectors including:

• Cleanroom Monitoring: Critical for maintaining positive or negative pressure environments in pharmaceutical, electronics, and healthcare facilities.
• HVAC System Diagnostics: Accurately measure static pressure, differential pressure across filters, and duct pressure to optimize system performance and troubleshoot issues.
• Test and Balance Procedures: Essential for ensuring proper airflow and pressure relationships in ventilation systems, meeting regulatory compliance and energy efficiency goals.
• Medical Equipment Calibration: Verify the accuracy of pressure-sensitive medical devices, crucial for patient safety and device reliability.
• Pneumatic System Analysis: Diagnose leaks, blockages, and performance issues in industrial pneumatic lines and controls.
• Computer Peripheral Testing: Used for evaluating cooling systems and airflow dynamics in sensitive electronic enclosures.
• Environmental Testing: Monitor pressure changes in environmental chambers and controlled atmospheres.

Complete Professional Kit Includes:

Every Datalogging Manometer comes with a comprehensive set of accessories, ensuring you have everything needed for immediate use:

• Rugged Hard-shell Carrying Case: Provides superior protection for the instrument and accessories during transport and storage, ideal for field use.
• 4 Standard AAA Batteries: Get started right out of the box.
• High-Quality Pressure Connection Hoses (2): Durable tubing for reliable pressure hook-ups.
• USB Computer Cable: For seamless data transfer and analysis.
• Data Acquisition Software: User-friendly software facilitates data download, visualization, and report generation, compatible with common operating systems.
• Detailed User Manual: Provides clear, step-by-step instructions for operation, calibration, and troubleshooting.

Technical Specifications for Uncompromising Performance:

• Dimensions: 6¾" × 2¾" × 1½" (208 × 70 × 40 mm) – Compact and ergonomic for comfortable handling.
• Weight: 9 oz (255 g) – Lightweight for extended use without fatigue.
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -10 to 60°C (14 to 140°F)
• Operating Humidity: <80% RH non-condensing
• Display: Backlit LCD, 4-digit dual line
• Sensor Type: High-precision semiconductor pressure sensor

Measuring Range and Resolution (depending on unit selected):

• PSI: 0 to 5 (Resolution: 0.001)
• In H₂O: 0 to 138 (Resolution: 0.01)
• kPa: 0 to 34.5 (Resolution: 0.001)
• Ft H₂O: 0 to 11.5 (Resolution: 0.001)
• In Hg: 0 to 10.2 (Resolution: 0.001)
• Cm H₂O: 0 to 352 (Resolution: 0.01)
• mbar: 0 to 345 (Resolution: 0.01)
• Bar: 0 to 0.345 (Resolution: 0.0001)
• mm Hg: 0 to 259 (Resolution: 0.01)
• Oz/In²: 0 to 80 (Resolution: 0.01)
• Kg/cm²: 0 to 0.35 (Resolution: 0.0001)
• Maximum Overload Pressure: 10 PSI (70 kPa) – Designed to withstand momentary overpressure without damage.
• Maximum Pressure: 20 PSI (138 kPa) – Safe operating limit.

Exceptional Accuracy and Reliability:

• Accuracy: ±0.3% full scale at 25ºC, ensuring high confidence in your readings.
• Repeatability: ±0.2% typical, Max ±0.5% full scale – Guarantees consistent results over multiple measurements.
• Combined Linearity and Hysteresis: ±0.29% typical, Max ±1.0% full scale – Minimizes measurement errors from non-linear sensor response and lag.

NIST Traceable Calibration for Ultimate Assurance:

Each Datalogging Manometer undergoes rigorous calibration and testing in our accredited in-house laboratory. This process confirms that every unit meets or exceeds all published specifications. All certifications are performed using instrumentation and reference standards that are directly traceable to the National Institute of Standards and Technology (NIST), providing you with verifiable accuracy and compliance for critical applications.

Your Purchase Includes Complete Documentation:

Every certified product is delivered with comprehensive documentation, ensuring full traceability and compliance:

• Unique Serial Number: For individual unit identification and tracking.
• Certification Label: Affixed to the device, confirming its calibrated status.
• Detailed Certification Testing Report: A comprehensive report outlining the calibration results and conditions.
• Certificate of Calibration: Your official document proving NIST traceability and calibration status.

Elevate Your Measurement Capabilities. Invest in the Datalogging Manometer today and experience unparalleled precision, efficiency, and reliability in pressure measurement.
