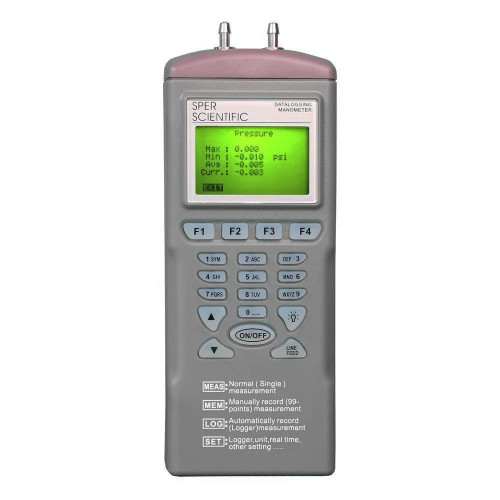

Datalogging Manometer, 5 PSI

Datalogging Manometer – 5 PSI

Automatically Log and Record Pressure Readings with Precision

The Datalogging Manometer is a powerful, portable tool designed for precise low differential pressure measurement across various professional applications. It allows you to automatically log up to 12,000 pressure readings, complete with date and time stamps, which can be easily downloaded to your computer for analysis. Additionally, you can manually record and review up to 99 readings directly on the meter’s display.

Key Features:

• User-Friendly Design: Equipped with a simple menu navigation and a clear, backlit dot matrix display for easy reading in all environments.
• Automatic Power Saving: Auto power-off functionality conserves battery life.
• Tripod Compatibility: Includes a screw mount for tripod use, ideal for stationary applications.
• Pressure Measurement Versatility: Reads both gauge and differential pressure in 11 different units of measurement, adapting to your specific needs.

Applications:

 This versatile meter is perfect for professionals in fields such as:

• Cleanroom monitoring
• HVAC system diagnostics
• Test and balance procedures
• Medical equipment calibration
• Pneumatic system analysis
• Computer peripheral testing

Comprehensive Kit Includes:

• Hard-shell carrying case for durability and portability
• 4 standard AAA batteries
• Pressure connection hose
• USB computer cable
• Software for data analysis
• User manual for step-by-step instructions

Specifications:

• Dimensions: 6¾" × 2¾" × 1½" (208 × 70 × 40 mm)
• Weight: 9 oz (255 g)
• Range and Resolution:
  • PSI: 5
  • In H₂O: 138
  • kPa: 34.5
  • Ft H₂O: 11.5
  • In Hg: 10.2
  • Cm H₂O: 352
  • mbar: 345
  • Bar: 0.345
  • mm Hg: 259
  • Oz/In²: 80
  • Kg/cm²: 0.35
• Maximum Pressure: 20 PSI

Accuracy:

• ±0.3% full scale at 25ºC
• Repeatability: ±0.2% typical, Max ±0.5% full scale
• Combined Linearity and Hysteresis: ±0.29% typical, Max ±1.0% full scale

Why Choose This Manometer?

The Datalogging Manometer is perfect for professionals who demand accuracy, efficiency, and reliability. Whether you're diagnosing HVAC systems or ensuring cleanroom compliance, this device delivers precise measurements and detailed data logging to simplify your work.

Invest in the Datalogging Manometer today and experience the ultimate in precision pressure measurement.
