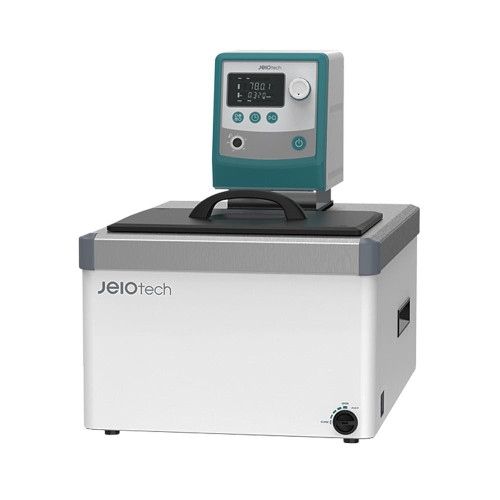

CW3-20 Heating Bath Circulator (20L), 230V

CW3-20 Heating Bath Circulator (20L), 230V

The CW3-20 Heating Bath Circulator combines cutting-edge technology and robust design, offering unmatched performance across a wide range of temperature control applications. Whether for laboratory research, industrial use, or production environments, this versatile device is engineered to provide both internal and external temperature regulation with precision and reliability. With its 20L stainless steel bath, advanced features, and user-friendly operation, the CW3-20 is a powerful solution for demanding thermal management tasks.

Key Features and Benefits

Performance

• Wide Temperature Range: Operates from ambient +5°C to 150°C (41°F to 302°F), making it suitable for diverse applications ranging from material testing to chemical reactions.
• Exceptional Temperature Stability: Maintains stability at ±0.05°C, ensuring highly accurate and consistent thermal regulation, even for delicate processes.
• Powerful Variable-Speed Pump: Offers five adjustable pressure levels to optimize circulation, with settings 1–3 for internal use and 4–5 for external use.
• Enhanced Flow Rate: A maximum flow rate of 7.4 gallons/min (28 liters/min) and pump pressure of 5.9 PSI (406.8 millibar) ensure reliable performance across all temperature ranges.
• Advanced Microprocessor PID Control: Features include three-point temperature calibration, automatic tuning, and automatic run functionality for precise and hands-free operation, minimizing errors.

Ease of Use

• Intuitive Interface: A bright VFD display with 0.1°C resolution and a quick-adjust dial knob makes operation simple and efficient.
• Effortless Automation: Dual wait on/off timers (ranging from 1 minute to 99 hours, 59 minutes) streamline workflows for maximum productivity.
• Memory Functionality: Save up to three frequently used temperature settings for instant recall, reducing setup time.
• Durable Stainless Steel Bath: Constructed with corrosion-resistant, leak-proof materials and rounded corners for easy cleaning and long-lasting performance.
• Convenient Fluid Management: A front-access drain valve simplifies fluid replacement and maintenance.
• Portable Design: Side handles make the unit easy to transport and reposition as needed.
• Enhanced Connectivity: Includes RS-232 and USB interfaces for external control and data collection. Optional LC Connected compatibility allows remote monitoring and control via the LC GreenBox and a mobile app.

Safety

• Isolated Components: The agitator, heater, and sensor are separated by a baffle plate to minimize turbulence and prevent accidental contact with hot bath fluid.
• Comprehensive Safety Features: Equipped with alarms for low fluid levels and dry-running, as well as over-temperature and over-current protection systems.
• Keypad Lock Functionality: Prevents unauthorized or accidental changes to settings during operation, ensuring a secure and reliable process.
• Cool-Touch Exterior: Insulated housing keeps the outer surface cool to the touch, even during extended operation, enhancing user safety.

Specifications

• Bath Volume: 20 L (0.7 cu ft)
• Working Temperature Range: Ambient +5°C to 150°C (41°F to 302°F)
• Temperature Stability: ±0.05°C (±0.09°F)
• Pump Performance:
  • Maximum Pressure: 5.9 PSI (406.8 millibar)
  • Maximum Flow Rate: 7.4 gallons/min (28 liters/min)
• Bath Dimensions (W × L × D): 290 × 214 × 200 mm (11.4 × 8.4 × 7.9 in)
• Overall Dimensions (W × L × H): 368 × 510 × 464 mm (14.5 × 20.1 × 18.3 in)
• Weight: 17.5 kg (38.6 lbs)
• Electrical Requirements: 230V, 60 Hz, 8.5A

Applications

The CW3-20 Heating Bath Circulator is ideal for a variety of professional environments and applications:

• Chemistry and Biochemistry: Precisely maintain temperatures for chemical reactions, enzyme activity, or sample storage.
• Pharmaceutical Research: Ensure stable conditions for drug formulation, testing, and quality assurance processes.
• Material Testing: Regulate temperature for thermal analysis, viscosity measurements, and material property evaluations.
• Food and Beverage Industry: Conduct quality control, thermal food processing, or pasteurization experiments with confidence.
• Industrial and R&D Facilities: Suitable for high-precision temperature control in manufacturing and research environments.

Why Choose the CW3-20?

The CW3-20 Heating Bath Circulator stands out as a premium choice for professionals who demand precision, durability, and ease of use. Its innovative design, advanced temperature control system, and robust safety features make it a reliable tool for a wide range of applications. Whether you’re in a research lab, production facility, or industrial setting, the CW3-20 delivers consistent performance you can depend on.

Invest in the CW3-20 Heating Bath Circulator for unparalleled reliability, precise temperature management, and enhanced user safety—empowering you to tackle even the most challenging thermal applications with confidence.
