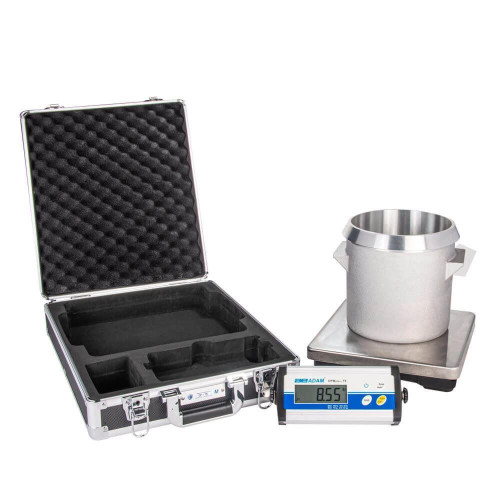

Compact Field Scale, 50g Readability, 200,000g Capacity
Compact Field Scales offer portable and affordable solutions for weighing concrete, soil, and asphalt samples in remote locations.
The Gilson Digital Field Scale is a portable and durable solution for weighing soil, concrete, and asphalt in the field. With a sturdy 11.8x11.8x2in (300x300x51mm) steel base, stainless steel platform, and a capacity range of 6 to 200kg (13 to 440lb), it ensures fast and accurate weight measurements. Its hold function locks readings on the LCD display, while selectable weighing units (kg, lb, oz, lb:oz) provide flexibility for various applications.
The scale meets ASTM C29, C138 and AASHTO T19, T121 standards, making it ideal for field unit weights and yield tests. It operates on six AA batteries or an AC adapter, and its compact design includes a foam-fitted aluminum carrying case for easy transport. The Gilson Digital Field Scale also has an optional RS-232 port for data acquisition.
Key Features:
- Accurate and portable for field use
- Large, stainless steel platform for stability and easy cleaning
- Compliant with ASTM and AASHTO standards for concrete and soil tests
- LCD display with selectable weighing units
- Full capacity tare and hold functions
Included Items:
- Scale, AC adapter, RS-232 interface, carrying case, wall mount bracket, and a 1-year warranty.
Specifications:
- Capacity: 200kg (440lb)
- Readability & Repeatability: 50g (0.1lb)
- Platform Size: 11.8x11.8x2in (300x300x51mm)
- Battery Life: 300 hours continuous use
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Meets Standard(s)
AASHTO T 121M/T 121 , AASHTO T 19M/T 19 , ASTM C138/138M , ASTM C29/29M
