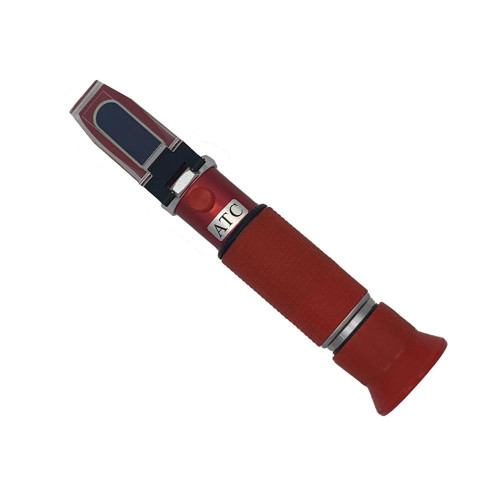

Clinical Refractometer with ATC

Clinical Refractometer with Automatic Temperature Compensation (ATC)

Quickly and accurately assess vital fluid levels with our state-of-the-art Clinical Refractometer.

Specifically designed for both human and veterinary clinical applications, this high-quality optical instrument is essential for fast, reliable diagnostics. It provides an immediate indication of vital fluid levels, making it an indispensable tool for veterinarians, doctors, and medical laboratories.

The refractometer’s triple scale allows you to read:

• Total Serum Protein (SP): Measures the total protein concentration in a serum sample.
• Urine Specific Gravity (SG): Assesses the kidney's ability to concentrate urine.
• Refractive Index (RI): Measures how light bends as it passes through a liquid sample.

A key feature of this model is the integrated Automatic Temperature Compensation (ATC) system (10°C - 30°C). This eliminates the need for manual temperature corrections, ensuring consistent and accurate readings even when sample temperatures vary.

Features & Benefits:

• User-Friendly Design: Features a soft rubber eyepiece for comfortable viewing and a non-slip rubber grip for secure handling.
• Direct Reading Scale: The clear, easy-to-read scale provides immediate measurements without the need for complex calculations.
• Guaranteed Accuracy: Delivers precise and repeatable testing results for confident diagnostics.
• Simple Operation: Extremely easy to use and calibrate with the included tools.
• Durable & Portable: Built with high-quality, durable materials to last for years. It requires no batteries or external power source and comes with a soft carrying case for protection and portability.
• Adjustable Focus: Allows for crisp, clear viewing of the measurement scale.

What's Included:

• Clinical Refractometer
• Soft Protective Carrying Case
• Pipette (Bulb Filler) for sample application
• Calibration Screwdriver
• Instruction Manual

Technical Specifications (Model 300076):

• Total Serum Protein:

  • Range: 0 - 12 g/dL
  • Minimum Division: 0.2 g/dL
  • Accuracy: ±0.2 g/dL

• Urine Specific Gravity:

  • Range: 1.000 - 1.050 SG
  • Minimum Division: 0.005 SG
  • Accuracy: ±0.005 SG

• Refractive Index (nD):

  • Range: 1.330 - 1.360 nD
  • Minimum Division: 0.0005 nD
  • Accuracy: ±0.0005 nD

• Temperature Compensation:

  • Automatic (ATC)

This refractometer is a cost-effective, reliable, and essential tool for any clinical setting requiring rapid fluid analysis.
