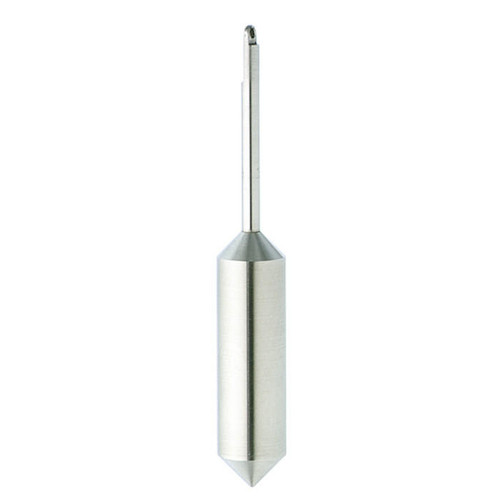

Brookfield Small Sample Adapter: SC4-34 Spindle
These spindles are for use with the Small Sample Adapter. The adapter’s rheologically correct cylindrical design is for highly accurate viscosity and shear rate measurements of small sample volumes. The defined geometry allows for consistent and precise measurements, easy cleaning and changing of the sample chamber without disturbing the viscometer setup. The embedded temperature probe allows for simultaneous sample temperature measurement for precise temperature control during rheology testing. The sample adapter SSA consisting of a cylindrical sample chamber and spindle design for precise shear rates and temperature control during measurement is easy to clean and change the sample chamber without disturbing the viscometer setup.
Introduction
The Small Sample Adapter (SSA) is a high-quality accessory designed for accurate viscosity measurements of small sample volumes. It is an essential tool for rheological evaluation where sample volume is limited. The SSA provides a defined geometry system for precise shear rate determinations and extremely accurate viscosity measurements. With its rheologically correct cylindrical geometry, the SSA ensures reliable and repeatable results.
Description
The Small Sample Adapter (SSA) is a premium accessory for measuring viscosity of small sample volumes. It has a cylindrical sample chamber and spindle for a defined geometry system. The SSA is compatible with Brookfield viscometers and rheometers DV1, DV2T and DV3T Ultra. With its small sample adapter's rheologically correct cylindrical geometry, the SSA gives very accurate viscosity measurements, perfect for industries where sample volume is limited. The SSA is equipped with an embedded RTD temperature probe to provide accurate direct temperature readings during viscosity assessments.
Technical Specifications
-
Sample Chamber Volume: 2-16 mL
-
Working Temperature Range: 1°C to 100°C
-
Viscosity Range: 1.32 x 10^(-3) cP (13.2 sec^(-1)) to 10^6 cP (10^6 sec^(-1))
-
Spindles: SC4-18, SC4-13R, SC4-13RP, SC4-13RPY, SC4-13RD-100
-
Material: Grade 304 Stainless Steel
-
RTD Temperature Sensors: Yes
-
Connection Cable: Yes
-
Compatible with: Brookfield DV1, DV2T, DV3T Ultra viscometers and rheometers
-
Brookfield Circulating Temperature Bath: Ensures precise temperature control during viscosity measurements
Design and Construction
The Small Sample Adapter consists of a cylindrical sample chamber and spindle, designed to provide a defined geometry system for accurate viscosity measurements. The sample chamber is made of high-quality materials, ensuring durability and resistance to corrosion. The SSA is designed to work with a temperature bath for precise temperature control, and the sample chamber fits into a flow jacket for temperature control. The adapter is also equipped with embedded RTD temperature sensors for direct readout of sample temperature.
Operating Principle
The Small Sample Adapter operates on the principle of rotational viscometry, where the spindle rotates at a precise speed, creating a shear rate that is proportional to the viscosity of the sample. The SSA’s rheologically correct cylindrical geometry ensures that the shear rate is uniform throughout the sample, providing extremely accurate viscosity measurements. The embedded RTD temperature sensors allow for precise temperature control, ensuring that the sample temperature is accurately measured and controlled.
Features and Benefits
-
Rheologically Correct Cylindrical Design: The sample adapter's rheologically correct cylindrical design ensures very accurate viscosity measurements.
-
Defined Geometry System: Consistent and precise measurements.
-
Easy Sample Chamber Replacement and Cleaning: No need to disturb the viscometer or temperature bath setup.
-
Temperature Control: Embedded RTD temperature sensors and Brookfield circulating temperature bath for precise temperature control.
-
Disposable Sample Chambers: For hard to clean materials.
-
Magnetic Spindle Coupling: Quick and easy spindle attachment and removal.
-
Compatible with: Various Brookfield viscometers and rheometers.
Industries and Applications
The Small Sample Adapter is used in:
-
Pharmaceutical and Biotech: For small sample volume of liquids and gels.
-
Food and Beverage: For sauces, dressings and other liquids.
-
Cosmetics and Personal Care: For creams, lotions and other products.
-
R&D Laboratories: For small sample volume of various materials.
-
Quality Control Laboratories: For viscosity measurement of products across various industries.
Accessories and Options
The Small Sample Adapter is available with various accessories and options, including:
-
Disposable sample chambers for hard-to-clean materials
-
Magnetic spindle coupling option for quick and easy spindle attachment and removal
-
Embedded temperature probe for direct temperature measurement of the sample
-
Temperature bath for precise temperature control
-
Sample chamber and spindle kits for convenience
Troubleshooting and Maintenance
To keep your Small Sample Adapter in good condition:
-
Clean regularly: Clean the sample chamber and spindle to get accurate measurements.
-
Temperature Bath Check: Check the temperature bath and circulating system is working correctly and calibrated.
-
RTD Temperature Sensors: Check the embedded RTD temperature sensors are working correctly.
-
Component Replacement: Replace the sample chamber and spindle when necessary to maintain accuracy and prevent contamination.
-
User Manual: Refer to user manual for troubleshooting and maintenance schedule.
Ordering Information
To order the Small Sample Adapter, please contact Brookfield Engineering or an authorized dealer. Please specify the desired spindle and sample chamber configuration, as well as any additional accessories or options required. The SSA is available in various configurations, including the SSA-18/13RPY and SSA-13R models.
Conclusion
The Small Sample Adapter is a high-quality accessory designed for accurate viscosity measurements of small sample volumes. Its rheologically correct cylindrical geometry and embedded RTD temperature sensors ensure extremely accurate viscosity measurements and precise temperature control. With its durable construction and various accessories and options, the SSA is an essential tool for rheological evaluation where sample volume is limited.
