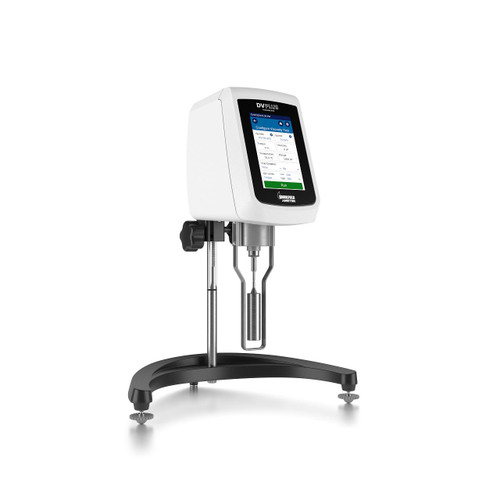

Brookfield DVPlus Viscometer, LV Torque Range, Threaded Coupling with Point & Jewel
DVPlus is AMETEK Brookfield’s latest addition to its high-performance viscometer series. A budget option for the determination of viscosity, it comes with a series of optional accessories, including the DVPlus Connect app and magnetic spindle coupling system.
The DVPlus Connect App is a time-saving app that allows easy monitoring, testing, and creating permanent test records.
Features and Benefits of Brookfield DVPlus Viscometer
- 5-Inch full-color touchscreen display – with enhanced controls, user interface, and real-time trend indicators. Supports multiple languages.
- Displays info including viscosity (cP, mPa∙s, P, Pa∙s), temperature (°C, °F or K), Torque: %, mNm, Dyne∙cm, speed/spindle. Displayed with test data
- USB / Bluetooth interface for use with DVPlus connect app
- 740 speeds for better range capability
- Optional RTD Temperature Probe DVP-94Y
- Direct access to time measurement function (time to torque, time to temperature, time to stop)
- Accuracy: ±1.0%
- Repeatability: ±0.2%
- Automatic Range Calculation: Full-Scale Range (FSR) at100%Maximum viscosity measured with Spindle / Speed combination
- Dynamic user interface for more direct access to features
- Magnetic spindle coupling system (optional)
What’s included
- Instrument
- Spindles
- Spindle Guard Leg
- Lab Stand
- Carrying Case
- Power Supply
Downloads
View the full line of Brookfield Viscometer and Asphalt Binder Testing equipment
