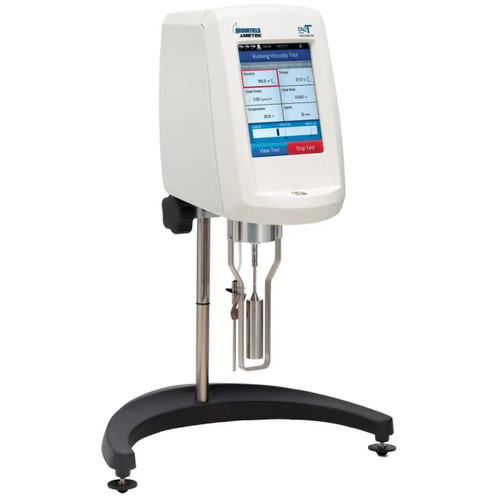

Brookfield DV2T Viscometer, LV Torque, Threaded Coupling w/ Point & Jewel

Brookfield DV2T Viscometer, LV Torque, Threaded Coupling w/ Point & Jewel

Precision matters when it comes to viscosity. With Brookfield DV2T Viscometers, lab viscosity testing is easy and more accurate. The device is designed for easy viscosity measurements, making the process straightforward and efficient.

Brookfield is an ISO 9001:2015 certified world leader in viscosity standards. Our DV2T—LV (Low Viscosity) Torque Range is perfect for testing the thinnest materials like inks, oils and solvents. It gives you ±1.0% of the range with displayed data. The DV2T Viscometer can also test medium viscosity materials like creams, food and paints, it’s versatile with different measuring capabilities due to its internal spring.

Additional special springs are available upon request for customized measurement needs.

The DV2T Viscometer has new programming capabilities and analysis including averaging and QC limits with alarms. The new Generator Software allows you to create user instructions with test protocols. The DV2T Viscometer can measure higher viscosity materials like caulking compounds.

The 5-inch color display to guide users through test and gathering data for fast and easy lab viscosity. Data can be printed directly to a local printer or sent to a PC. We also offer RheocalcT Software for additional automation and collection. Understanding non newtonian fluids is crucial for accurate viscosity measurements.

Features and Benefits:

• 5-inch full color, touch screen display: Supports multiple languages.

• Displayed information:

• Viscosity (cP/mP·s)

• Temperature (°C/°F)

• Shear rate/stress

• % torque

• Spindle/speed

• Step program status

• Enhanced security: Customizable user levels and password access, 21 CFR Part 11 compliant.

• Built-in options: Timed tests, averaging, QC limits/alarms, speed/spindle lists, on-screen data comparison.

• Auto-range function: Shows max viscosity with any spindle/speed combination.

• USB PC interface: Computer control and data. With PG Flash software you can download test programs.

• Front-facing bubble level: For easy viewing.

• Built-in temperature probe: For accurate temperature measurement

• Accuracy and repeatability: ±1.0% of range with displayed data and ±0.2%

• NIST Traceable Viscosity Standards Available: For reliable and standardized testing.

Specifications

VISCOSITY RANGE cP (mPa•s) SPEEDS MODEL Min. Max. RPM Number of Increments DV2TLV 1† 6M .1-200 200 DV2TRV 100†† 40M .1-200 200 DV2THA 200†† 80M .1-200 200 DV2THB 800†† 320M .1-200 200

SPRING TORQUE MODEL Dyne-cm Milli Newton-m DV2TLV 673.7 0.0673 DV2TRV 7,187.0 0.7187 DV2THA 14,374.0 1.4374 DV2THB 57,496.0 5.7496

† 1 cP with UL Adapter accessory. 15 cP on LV with standard spindles.

††Min viscosity with RV/HA/HB spindle.

M=1 million cP=Centipoise mPa·s=Millipascal·seconds

What’s Included:

• Instrument

• 4 LV Spindles

• PG Flash Software

• RTD Temperature Probe

• Spindle Guard Leg

• Lab Stand (Model G)

• Screen Protector

• Carrying Case

Application and Industry Use:

The Brookfield Viscometer is used across many industries in the USA, food and beverage, pharmaceuticals, cosmetics to measure the viscosity of liquids. It’s used to ensure product quality and consistency in manufacturing processes.

Comprehensive Testing Solutions:

Check out our full line of Viscometers, Asphalt Binder Testing, Brookfield ViscometersAsphalt Testing equipment. Whether you need lab research or quality control in production, we have a Brookfield Viscometer for you.

Learn More:

Visit our resource section and blog for more information on viscometer applications, including how to use Brookfield Viscometers for your industry. Everything you need to know about Brookfield Viscometers and their applications to ensure the highest quality and accuracy in your viscosity measurements.

Browse all Certified MTP for your viscosity testing needs and see our viscometers and accessories. Asphalt binder testing to detailed viscosity testing we have the tools and knowledge to support your testing needs in the USA.Brookfield DV2T Viscometer

Lab Viscosity Instrument

5” color display walks you through tes and data recording. Powerful programming for detailed results, averaging, shear stress, and QC limits with alarms. Measures low to medium viscosity materials. 21 CFR Part 11 compliant.

Specifications and Automatic Gathering Capability

• Display: 5” color display

• Programming: Powerful programming for test creation and data collection

• Analysis: Data and QC limits with alarms

• Viscosity Measurement: cP, mPa·s, M, shear rate

• Accuracy: ±1.0% of the range with displayed test data, NIST traceable viscosity standards

• Min. Viscosity: 1 cP with UL Adapter accessory, 15 cP on LV with standard spindles

• Optional Software: RheocalcT Software for computer control and data collection

Features and Program Generator Software for DV2T

• Easy Viscosity Testing: 5” color display makes testing easy, enhances capabilities and results analysis.

• Powerful Programming: Makes test and data simple.

• Results Analysis: Programming and results analysis includes averaging, shear stress, and QC limits with alarms.

• Versatile: Measures all types of materials.

• Computer Control: Automated collection.

• Enhanced security: Password access, 21 CFR Part 11 compliant.

• QC Limits: Results analysis including data, customizable testing protocols.

Key Benefits

The DV2T Viscometer offers many key benefits. Here are a few:

• Easy Test and Data Recording: 5-inch color display guides user through test and data gathering, simplifies setup and execution of tests. Even complex tests are easy to perform.

• Automatic Data Gathering Capability: Automatically gathers data, reduces time spent on manual data entry and minimizes errors. Data can be printed locally or sent to a PC.

• Test Programs: New Program Generator Software allows users to create custom test programs with multi-step test protocols. Total control over the testing process to meet specific requirements.

• Averaging and QC Limits: Advanced data averaging and QC limits with alarms. Users can set QC limits and get alerts when data goes out of range, ensuring product quality.

• Optional Computer Control: For more automated control, the RheocalcT software allows the DV2T to be controlled by a computer. Enhances collection and analysis capabilities, makes it easier to manage large amounts of data.

• Easy Viscosity Testing: Designed for user convenience, the DV2T makes viscosity testing easy with many user-friendly features. Low to medium viscosity materials, no problem.

• Displayed Data Repeatability: DV2T ensures displayed data repeatability, gives users consistent and accurate results. Critical for quality control.

• Medium Viscosity Materials: In addition to low viscosity materials, the DV2T measures medium viscosity materials like creams, food and paints, very versatile.

• Local Printer: Includes local printer to print data and results, easy record-keeping and data sharing.

• Test Parameters Automatically Control: The instrument can control test parameters like temperature and speed, so users can focus on other important parts of their testing process.

• Analysis Including Data Averaging: DV2T has analysis capabilities including data averaging. Helps users make informed decisions based on averaged test data.

• Users Through Test Creation: The instrument guides users through the entire test creation and data gathering process, even for those new to viscosity testing.

• QC Limits with Alarms: Programmable QC limits and alarms, any deviations from set parameters will be flagged, strict quality control.

• Total Control: The DV360 software gives users total control over settings and data analysis, precision and adaptability for lab environments.

By having these features and benefits, the Brookfield DV2T Viscometer is a powerful and versatile instrument for viscosity measurement in many industries.

Instrument Features

The DV2T Viscometer is equipped with a range of features that make it an ideal instrument for laboratory viscosity measurements. Some of the key features include:

• 5-inch Color Touch Screen Display: The intuitive color touch screen display guides users through test creation and data gathering, making the process straightforward and efficient. This feature supports multiple languages, ensuring accessibility for a global user base.

• Powerful Programming Capabilities: The DV2T Viscometer offers powerful programming capabilities, allowing users to create custom test protocols tailored to their specific needs. The new Program Generator Software simplifies the creation of multi-step test protocols, enhancing the instrument’s versatility.

• Advanced Data Analysis Features: With advanced data analysis capabilities, including data averaging and QC limits with alarms, the DV2T ensures precise viscosity measurements. Users can set programmable QC limits and receive alerts when test data deviates from the set parameters, ensuring strict quality control.

• Total Control Over Viscometer Operations: For those seeking additional automated control, the optional DV360 software provides total control over the viscometer’s operations. This software enhances data collection and analysis capabilities, making it easier to manage large amounts of test data.

• Versatile and Efficient Design: The DV2T Viscometer is designed for versatility and efficiency in laboratory settings. It can measure a wide range of materials, from low to medium viscosity, making it suitable for various applications.

• Precise Viscosity Measurements: The instrument’s continuous torque sensing capability ensures accurate and repeatable viscosity measurements. This precision is critical for quality control and research and development purposes.

By incorporating these features, the DV2T Viscometer offers a comprehensive solution for viscosity measurements, ensuring accuracy, efficiency, and ease of use.

Applications, Industries, Multi-Step Test Protocols## Applications, Industries

• Food and Beverage: Quality and process control.

• Pharmaceuticals: Development and quality control. 21 CFR Part 11 compliant.

• Cosmetics: Development and quality control.

• Laboratory Research: Detailed testing for R&D.

• Industrial Production: Quality control and process monitoring with NIST traceable viscosity standards.

Support, Accessories, Optional Computer Control

• Program Generator Software: Create custom test programs with multi-step test protocols for user instructions.

• RheocalcT Software: Optional rheocalct software for computer control and collection. Data can be recorded directly to a local printer or sent to a PC.

• Local Printer: For data recording.

• USB Flash Drive: For uploading user created test protocols.

• Optional Spindles: For different viscosity ranges and shear rate measurements.

• Calibration: Annual calibration recommended to keep the instrument in good condition and extend its life with NIST traceable viscosity standards.
