Asphalt Sample Ejector, Hand-Operated

Asphalt Sample Ejector, Hand-Operated

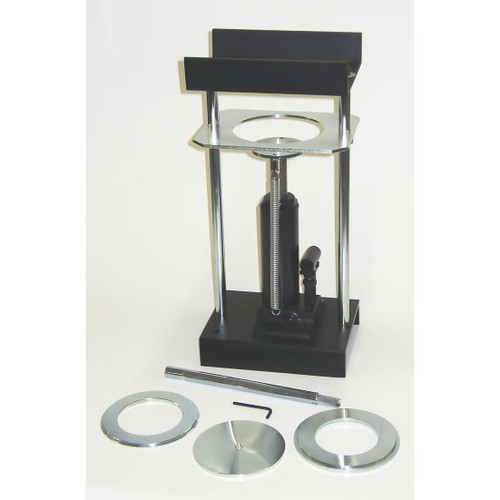

This versatile, hand-operated Asphalt Sample Ejector is expertly designed for both laboratory and field use, allowing for the smooth extraction of asphalt core samples from 4" (102mm) and 6" (152mm) compaction molds.

Engineered for precision and power, the ejector utilizes a robust, hand-operated hydraulic jack with a 3-ton (27.7kN) capacity to generate ample ejection force. This ensures consistent and damage-free removal of even highly compacted specimens.

The unit features a durable, yet lightweight, cast-aluminum ejector head assembly. For enhanced usability, the head can be quickly adjusted to various heights using quick-release locking pins. This smart design allows the operator to easily match the ejection travel to the specific height of the mold being used, accommodating a variety of sample sizes. The ejector offers a maximum piston stroke of 7.5" (190mm), providing sufficient travel for most standard compaction molds.

Its compact and stable frame makes it an ideal solution for any workspace.

Key Features:

• Designed for 4" and 6" compaction molds
• 3-ton (27.7kN) capacity hydraulic jack
• Adjustable head assembly for different mold heights
• Maximum stroke of 7.5" (190mm)
• Suitable for both lab and field applications

Specifications:

• Overall Dimensions: 13"W x 6"D x 27"H (330 x 152 x 686mm)
• Weight: 45 lbs (20.4kg)

Meets Test Methods:

• AASHTO T245
• ASTM D5581
• ASTM D6926
