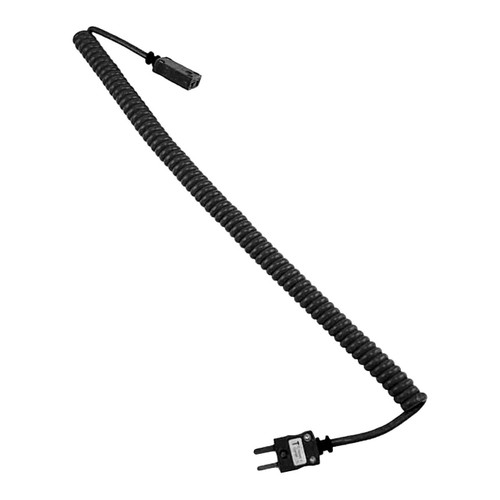

60in Thermocouple Extension - Coiled - Types T, Female Jack, Mini Plug

60in Thermocouple Extension - Coiled - Type T, Female Jack, Mini Plug

This 60-inch coiled thermocouple extension wire is designed for seamless signal transfer between thermocouple sensors and readout devices, ensuring high accuracy and reliability in temperature measurement applications. Ideal for industrial and laboratory use, this extension provides flexibility and durability while maintaining precise calibration standards.

Key Features:

• Thermocouple Type: Type T (Copper/Constantan), compatible with ASTM/ANSI standards.
• Connection: Equipped with a standard female jack and a mini plug for easy integration.
• Material Compatibility: The extension wire material matches the positive and negative legs of the thermocouple type used, ensuring proper functionality and accuracy.
• Temperature Range: Performs continuously at up to 105°C, making it suitable for a wide range of applications.
• Flexibility: Coiled design allows a relaxed length of 12 inches, with a maximum extension of 60 inches, providing versatility for various setups.
• Color Coding: Blue plug for easy identification of Type T thermocouples.

Applications: Thermocouple extension wires like this are commonly used in industries such as manufacturing, energy, chemical processing, and research laboratories. They are ideal for scenarios requiring precise temperature monitoring and control, such as process equipment, test chambers, kilns, and environmental monitoring systems.

Additional Information:

• If a transmitter is included within the thermocouple assembly, copper wire may replace the thermocouple extension wire to transmit the 4-20 mA scalable signal to process control equipment.
• This extension wire is compatible with a wide range of thermocouple types, including specialized assemblies for hazardous locations and applications requiring protection tubes, thermowells, or connection heads.

Available Options: Pyromation offers a broad selection of thermocouple-grade and extension wires in various gauges, insulation types, and special constructions, including multi-pair thermocouple wires and RTD cables. These are specified and ordered following ASTM/ANSI designations. Popular thermocouple types include:

• Type K (Chromel/Alumel)
• Type J (Iron/Constantan)
• Type E (Chromel/Constantan)
• Type N (Nicrosil/Nisil)
• Type S, R, B (Platinum and Platinum-Rhodium combinations)

About Pyromation: Pyromation specializes in manufacturing thermocouples and thermocouple assemblies for a variety of market applications. From MgO (Magnesium Oxide) thermocouples to industrial-grade and general-purpose thermocouples, Pyromation provides durable and reliable solutions for temperature measurement. For hazardous locations, we also offer specially designed thermocouples with protective housings and transmitters.

Part Number: TE5-C3060-6

Description: Type T, Extension, Coil Cord, Standard Female Jack, Mini Plug, 60" Max Extension

Temperature Range: 105°C Continuous

Plug Color: Blue

Relaxed Length: 12"

For more information or to explore additional thermocouple options, reach out to Pyromation to find the perfect solution for your application needs.
