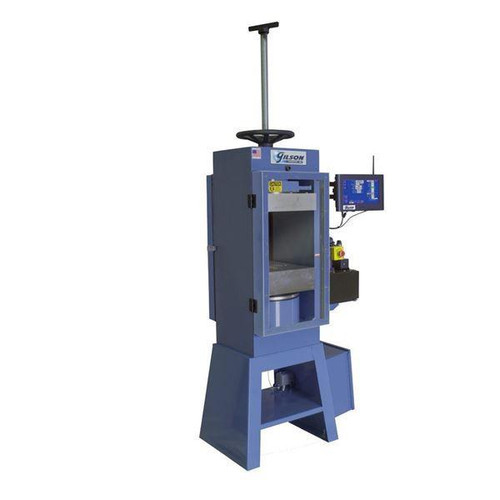

500,000lbf Automatic Compression Machine for a Two Block in Prism

500,000lbf Automatic Compression Machine for Two Block in Prism Sample

The 500,000lbf Automatic Compression Machine is a highly advanced and rigid frame unit designed to test two-block-in-prism samples with precision and efficiency. With a larger daylight opening and an enclosed test chamber, this machine is optimized for daily use and frequent testing of high-strength samples, making it a reliable and indispensable tool for laboratories and industries requiring repetitive, accurate testing.

Equipped with the same automatic controller and hydraulic loading system as the Rigid Frame (RF) machines, the design ensures exceptional performance, meeting and exceeding ACI 363 recommendations for structural testing systems. Whether you’re testing concrete block prisms or other high-strength materials, this machine delivers results you can trust.

Advanced Features for Superior Performance

• High Rigidity for Accuracy: The rigid load frame minimizes explosive sample failures and reduces effects from sample misalignments, ensuring increased consistency and repeatability in results.

• Efficient Hydraulic System: A variable frequency drive controls the hydraulic pump motor, adjusting speeds to meet required pressure levels. This reduces heat buildup in the system, extending its service life while maintaining smooth, precise operation.

• Automated Testing Process: With the push of a button, the machine automatically performs all stages of the test process in compliance with ASTM and AASHTO standards. This includes specimen contact, preload and test load application, break detection, data collection, and piston return.

• Streamlined Data Management: View real-time testing data, including force, stress, rate of load, and graphing of load vs. time or stress vs. strain on the integrated HMI screen. Test data, including laboratory ID, sample ID, and client information, is stored for easy reporting and can be transferred via Wi-Fi, USB, or LAN ports.

• Operator-Friendly Design: Operators only need to position the specimen, initiate the test, and remove the sample after testing. Minimal input reduces variability in load application and test procedures, ensuring consistent results.

• Enhanced Safety and Noise Reduction: The fully enclosed test chamber reduces noise and dust, while fragment guards with shatter-resistant Lexan® inserts protect operators and allow clear observation of the testing process.

Built for Modern Testing Needs

This machine’s advanced features make it ideal for both research laboratories and industrial applications. The application of force and load rates is precisely regulated by the system’s machine feedback, and test setups can be repeated without re-entering data, simplifying workflows for operators. The unit is also quieter and more efficient compared to older models, thanks to electronic sensors and an integrated electric motor.

Technical Specifications

• Load Capacity: 500,000lbf (2,002kN)
• Daylight Opening with Platens: 14x19in (355.6x482.6mm), WxH
• Product Dimensions: 34x22x62in (863.6x558.8x1,574.8mm), WxDxH
• Power Requirements: Operates on 110V, 60Hz (optional 220V, 50/60Hz available with “F” suffix)

What’s Included

• 500,000lbf Automatic Compression Machine for Two Block in Prism Sample
• Top block platen accessory
• Draw rod for easy operation
• 8in draw-down spacer for sample alignment

Ideal Applications

The machine is perfect for testing two-block-in-prism samples, commonly used in construction, materials research, and quality control environments. Its robust design and advanced automation make it suitable for industries prioritizing accuracy, efficiency, and repeatable results.

Why Choose This Machine?

The 500,000lbf Automatic Compression Machine offers a combination of precision engineering, advanced automation, and seamless data management. Its ability to handle daily testing of high-strength materials, coupled with its safety features and data connectivity, makes it an essential tool for professionals in construction materials testing and research. Whether you’re navigating complex testing requirements or scaling daily operations, this machine delivers reliable performance every time.
