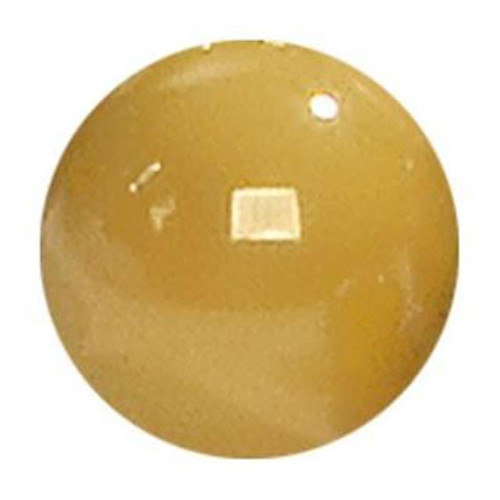

40mm Grinding Ball, Zirconium Oxide

40mm Zirconium Oxide Grinding Ball

Unleash Superior Grinding Performance

These 40mm Zirconium Oxide Grinding Balls are specifically designed for use with Fritsch Planetary Mills, playing a crucial role in achieving precise sample comminution. Made from high-purity Zirconium Oxide (ZrO2), these balls offer exceptional hardness, wear resistance, and a high specific gravity, making them ideal for processing a wide range of materials, particularly fibrous and abrasive samples.

Optimizing Your Grinding Process

The final particle size of your sample is directly influenced by the size and quantity of grinding balls used. Generally, larger balls facilitate coarser grinding, while smaller balls yield finer products. For optimal results, it's recommended to use balls of a uniform size within a single grinding jar.

To fine-tune your grinding process, user trials are highly recommended. Increasing the quantity of balls typically reduces grinding times and produces finer particle size distributions, up to an optimum loading point. A crucial guideline is to ensure the total volume of grinding balls and sample does not exceed two-thirds of the grinding bowl's capacity, leaving the remaining one-third for effective grinding action and impact.

Material Selection and Contamination Control

To prevent wear and ensure efficient grinding, always select grinding bowls and balls made from materials harder than your sample. For extremely hard samples, consider pairing these Zirconium Oxide balls with corundum bowls for enhanced performance. While Zirconium Oxide offers excellent chemical inertness, it's important to be mindful of potential cross-contamination when using dissimilar materials, especially with sensitive analytical applications.

Product Specifications:

• Material: High-purity Zirconium Oxide (ZrO2)
• Diameter: 40mm
• Density: 5.7 g/cm³ (High density for efficient impact)
• Hardness: Excellent hardness ensures durability and minimal wear
• Chemical Stability: Highly resistant to most acids and alkalis, reducing contamination risk
• Application Suitability: Recommended for a broad spectrum of materials, particularly effective for fibrous and abrasive samples where high energy input is required.

Compatibility and Ordering:

This 40mm Zirconium Oxide grinding ball is ideally suited for 500ml grinding bowls. Balls with a 3mm diameter and smaller are supplied in packs of 100 pieces. All other larger balls are sold individually. Please note that Classic Grinding Bowls or Premium Grinding Bowls are purchased separately.
