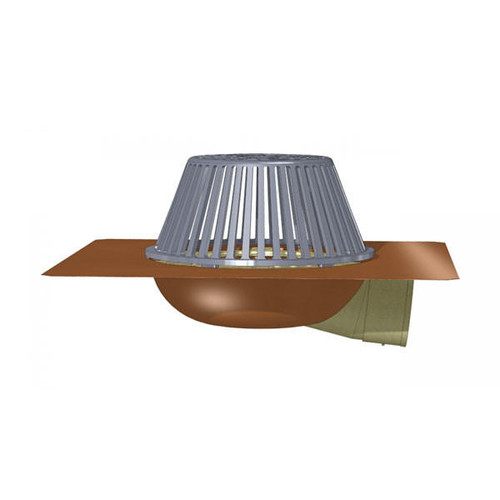

3in Side Outlet Roof Drain

Side Outlet Roof Drain | Thunderbird Copper Roof Drains

Installation: Flat roof

• Area roof drain.
• Great for applications with minimal joist space.
• Made of strong 20 ounce sandblasted copper for great membrane adhesion.
• Seamless flashing and drain basin.
• Comes with strong ABS Cyclolac dome strainer.
• 2", 3", and 4" sizes available.

Details

• Area roof drain with side drain outlet
• 20 ounce copper, 10" diameter seamless basin
• Great for applications with minimal joist space
• Sandblasted flashing for excellent waterproofing adhesion
• 2", 3", or 4" bronze fitting
• ABS dome strainer
• Manufactured in the USA by Thunderbird Products

Note on Fittings: Two types of fittings are available.
A threaded adapter fitting is used primarily with 2" PVC pipe applications. The threads on the bronze fittings are male and can be attached to a threaded female PVC adapter.
A no hub fitting is the standard fitting used in the industry. With this fitting a rubber coupling is used to connect the drain to the drainage pipe.

Part numbers

• RDHZ2NH: 2" Side Outlet Roof Drain
• RDHZ2NHCR: 2" Side Outlet Roof Drain w/ Optional Clamping Ring
• RDHZ2TA: 2" Male Threaded Side Outlet Roof Drain
• RDHZ2TACR: 2" Male Threaded Side Outlet Roof Drain w/ Optional Clamping Ring
• RDHZ3NH: 3" Side Outlet Roof Drain
• RDHZ3NHCR: 3" Side Outlet Roof Drain w/ Optional Clamping Ring
• RDHZ3TA: 3" Male Threaded Side Outlet Roof Drain
• RDHZ3TACR: 3" Male Threaded Side Outlet Roof Drain w/ Optional Clamping Ring
• RDHZ4NH: 4" Side Outlet Roof Drain
• RDHZ4NHCR: 4" Side Outlet Roof Drain w/ Optional Clamping Ring

The Side Outlet Roof Drain by Thunderbird Copper Roof Drains is a versatile and efficient solution for flat roofs. This area roof drain is specifically designed for applications with minimal joist space, making it a great choice for tight installations.

The Side Outlet Roof Drain is constructed from strong 20 ounce sandblasted copper, ensuring excellent adhesion with the roofing membrane. The seamless flashing and drain basin provide a watertight seal, preventing any leaks or water damage. The drain is available in 2", 3", and 4" sizes, allowing for flexibility in installation options.

With its side drain outlet, this roof drain offers efficient water drainage, keeping your flat roof clear of excess water. The 10" diameter seamless basin can handle a significant amount of water flow, ensuring that your roof remains free from pooling water.

The Side Outlet Roof Drain comes with a sturdy ABS Cyclolac dome strainer, which effectively traps debris and prevents it from entering the drainage system. This helps to prolong the life of the drain and maintain optimal performance.

Manufactured in the USA by Thunderbird Products, this roof drain is built to last. It is designed to withstand the harshest weather conditions and provide reliable performance for years to come.

Please note that there are two types of fittings available for the Side Outlet Roof Drain. The threaded adapter fitting is used primarily with 2" PVC pipe applications, while the no hub fitting is the standard fitting used in the industry. The appropriate fitting should be selected based on your specific drainage needs.

Choose the Side Outlet Roof Drain by Thunderbird Copper Roof Drains for a high-quality, reliable solution for your flat roof drainage needs. Whether you have limited joist space or require efficient water drainage, this roof drain is the ideal choice. Don't compromise on quality – trust Thunderbird Copper Roof Drains for all your roof drainage needs.
