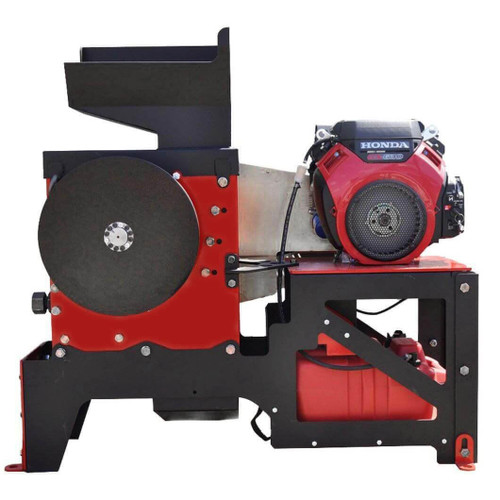

10in Jaw Crusher with 20hp Gasoline Engine

10in Jaw Crusher with 20hp Gasoline Engine

The 10in Jaw Crusher is a high-performance crushing machine designed for efficient and reliable processing of aggregates, minerals, and ores. Ideal for bulk material handling, it delivers precision and durability, making it suitable for demanding laboratory and industrial applications.

Key Features:

• Maximum Feed Size: Handles material up to 8in (203mm) in size, making it versatile for a wide range of applications.
• Adjustable Output Size: Easily regulate the final output size between ¼in to 3in (6 to 76mm) via jaw plate clearance adjustments, ensuring flexibility for different material requirements.
• High Throughput: Capable of processing 1 to 2 tons (900 to 1,800kg) per hour, delivering consistent performance under heavy workloads.
• Jaw Dimensions: The 10 x 6in (254 x 152mm) jaw plates, made from ¾in (19mm) thick material, are hard-faced with abrasion-resistant steel (Brinell hardness of 450) to withstand tough industrial use. Optional Cast Manganese/Chrome steel jaw plates are available for increased durability when working with exceptionally hard materials.
• Power Options: Choose between a 20hp Gasoline engine, an 18hp Diesel engine, or a 10hp Electric Motor. The electric motor is compatible with common three-phase voltage configurations (208 to 460 volts), ensuring broad operational flexibility.
• Sturdy Construction: The main shaft measures 2.4in (61mm) at the cam shaft and 2in (51mm) at the drive shaft, ensuring robust and reliable operation even under heavy loads.

Specifications at a Glance:

• Max Particle Size: 8in (203mm)
• Throughput Capacity: 1 to 2 tons per hour (900 to 1,800kg/hour)
• Final Output Size: 0.25 to 3in (6 to 76mm)
• Jaw Material: Abrasion-Resistant Steel; optional Manganese/Chrome plates for harder materials
• Applications: Bulk aggregates, minerals, ores, and other hard or abrasive materials
• Product Dimensions: 56 x 32 x 48in (1422 x 812 x 1220mm), WxDxH
• Motor Options: 20hp Gasoline / 3 Phase Electric / 18hp Diesel

Accessories Available:

• Cast Manganese/Chrome Steel Jaw Plates: Specifically designed for crushing especially hard or abrasive materials, these plates increase the longevity of the crusher and improve performance in demanding applications.
• Additional Replacement Parts: Ensure long-term operation with a range of compatible replacement components for wear and tear.

This 10in Jaw Crusher is a dependable solution for various industries, including mining, construction, and material testing laboratories. Its rugged design, flexible configuration options, and high throughput make it an excellent choice for handling challenging materials efficiently. Whether you're processing bulk aggregates or tough ores, the 10in Jaw Crusher delivers precise and reliable results you can count on.
