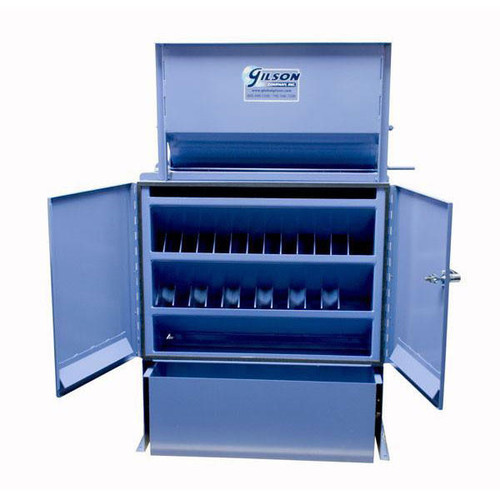

1.8 cu ft Hopper Laboratory Split-O-Matic, 24 Chutes at 45 Degrees

Precision Sample Reduction: Introducing the Gilson SM-5L Series Laboratory Split-O-Matic® Splitter

For laboratories demanding unparalleled accuracy and efficiency in sample preparation, the Gilson SM-5L Series Laboratory Split-O-Matic® Splitter stands as the definitive solution. Engineered to meticulously reduce large bulk samples of granular materials, this robust unit ensures representative test specimens are prepared quickly and reliably, adhering to the most stringent industry standards.

Unmatched Capacity and Versatile Application Boasting a generous 1.8ft³ (51L) hopper capacity, the SM-5L is purpose-built to handle substantial volumes of materials such as aggregates, sand, gravel, ores, coal, coke, and other free-flowing granular substances with a topsize up to 1/2in (13mm). Its design focuses on processing these large samples in a single pass, drastically cutting down preparation time while maintaining sample integrity for subsequent testing.

Exclusive Three-Stage Design for Testing Flexibility A hallmark of Gilson engineering, the exclusive three-stage design provides exceptional versatility. Operators can effortlessly select precise sample fractions of 1/2, 1/4, or 1/8 of the original bulk sample using a simple selection lever. This intelligent mechanism directs the chosen fraction to a dedicated sample pan, while the remainder is channeled to a separate reject pan, preventing cross-contamination and ensuring accurate division crucial for reliable test results.

Advanced Chute System for Superior Accuracy Precision is paramount, and the SM-5L delivers with its meticulously designed V-bottom chutes. These chutes are engineered to precisely align material flow, guaranteeing uniform distribution and exceptionally accurate divisions. With 24 chutes per stage, each measuring 1in (25mm) in width and sloped at an optimal 45 degrees, the system ensures consistent and reliable splitting performance, critical for meeting industry specifications.

Controlled Sample Introduction for Optimal Integrity Further enhancing accuracy and operator control, the sample hopper features a gate-release mechanism. This allows for a controlled, even distribution of material over the chutes, eliminating surges and ensuring that every particle has an equal opportunity for division. This controlled introduction is vital for obtaining truly representative samples, which is the foundation of accurate material analysis.

Built for Durability and Easy Maintenance Constructed from heavy, welded-steel, the Laboratory Splitter is built for enduring performance in demanding laboratory environments. Its painted and baked finish provides superior resistance to wear and corrosion. Thoughtful design includes front panel doors that latch securely for superior dust control during operation and swing wide open for effortless cleaning and maintenance, ensuring long-term operational efficiency and a contaminant-free workspace. The bottom flange is designed for either anchored installation or stable freestanding use, adapting to your lab setup.

Comprehensive Compliance & Inclusions The Gilson SM-5L proudly meets stringent industry testing standards, including ASTM C778, ASTM C702/702M, ASTM D75/75M, AASHTO T 248, and AASHTO R 76, underscoring its reliability and suitability for critical applications where compliance is non-negotiable. Each unit comes complete with the Gilson 1.8ft³ Hopper Laboratory Split-O-Matic Splitter itself, a dedicated sample hopper, and appropriately sized sample pans to match the hopper capacity, providing a ready-to-use solution right out of the box.

Key Specifications:

• Hopper Capacity: 1.8ft³ (51L)
• Chutes per Stage: 24
• Chute Angle: 45 degrees
• Selectable Sample Fractions: 1/2, 1/4, 1/8
• Chute Width: 1in (25mm)
• Maximum Particle Size: 1/2in (13mm)
• Product Dimensions (W x D x H, without hopper): 32 x 17 x 47in (813 x 432 x 1,194mm)
• Compliant Test Methods: ASTM C778, ASTM C702/702M, ASTM D75/75M, AASHTO T 248, AASHTO R 76
