UTRED30-16 Vaccine Data Logger, NIST Certificate of Calibration

“Meets or exceeds CDC guidelines”.

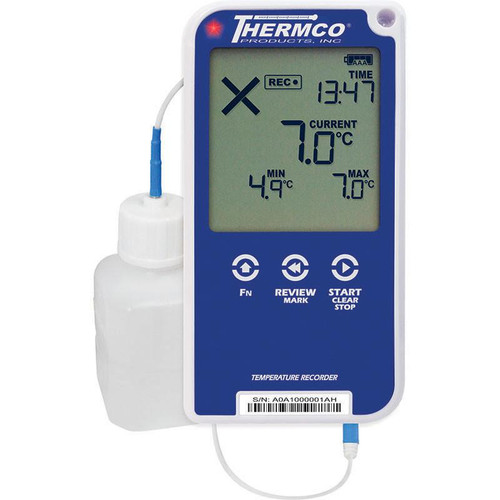

The UTRED30-16 30 day logger with display.

A CDC / VFC compliant ISO/IEC 17025 NIST traceable temperature data logger for monitoring & recording temperatures of vaccines in refrigerators or freezers.
New large Easy-to-Read display to see the current, min and max temperatures and alarm status for up to 30 days at a glance.

The UTRED30-16 measures and stores up to 16,129 readings without needing off loading of data, thats 5 months of recordings @ 15 minuite intervals.
Check and reset min-max temperature readings at any time.

Audible and Flashing LED signals temperature excursions. Download data via LogTag Analyzer Software or a PDF (no software required).
UTRED30-16 has a wide temperature range of -40° to +99°C (-40° to +210°F) via external buffer bottle probe.

FEATURES:

• New large easy-to-read display.
• Read Current temperature and latest Min-Max temperature at a glance.
• Check and reset Min-Max temperature reading at any time.
• Audible alarm and flashing red LED signals a temperature alarm.
• View alarm status for up to 30 days at a glance.
• Real-time data automatically uploaded via WiFi to the LogTag Online cloud.
• Powered via a standard plug-in power adaptor and a USB cable.
• Can be powered by 2x AAA Alkaline batteries (user replaceable) if not external powered.
• Download data via LogTag Analyzer or as a PDF (no software required) when WiFi is unavailable.
• Measure and store up 16,129 time/temperature readings
• Interchangeable external probe with high quality gold-plated connector.
• Record inspections at the push of a button.
• Auto-pause function suspends alarm and statistic processing when the external sensor is unplugged.
• Second battery backup via a coin cell to ensure no data is lost even if the power source and alkaline batteries fail.
• Comprehensive customization options including sampling interval and alarm settings.
• Accessories include a range of external sensor options, wall mount bracket, and glycol buffer.

SPECIFICATIONS:

Product Model            UTRED30-WiFi

External Sensor Measurement Range -40°C to +99°C (-40°F to +210°F)

Operating Temperature Range           -40°C to +99°C. (-40°F to 210°F)

Rated Temperature Resolution           0.1°C or 0.1°F.

Rated Temperature Reading Accuracy            Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F).

Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F).

Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F).

Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F).

Recording Capacity     16,129 temperature readings. 67 days at 6 min logging.

Day summary statistics memory (for display on LCD): up to 30 days of Min/Max/duration and alarm trigger statistics.

Sampling Interval        Configurable from 30 seconds to 18 hours.

Logging Start Options Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time.

Download Time          Typically with full memory (16,129 readings) in less than 10 seconds.

Environmental IP51 (when vertically mounted or hung with USB dust-cap in place).

Power Source  5V via micro USB socket or, 2 x 1.5V AAA alkaline batteries. CR2032 LiMg coin cell (backup logging function only).

Battery Life      Typically 12 months of operation (CR2032). AAA battery up to 2 months.

Connection Interface  USB 2.0 / Micro-USB plug.

Size      123mm(H) x 63mm(W) x 12.5mm(T).

Weight 80g (excluding probe and AAA batteries).

Case Material  Polycarbonate.
