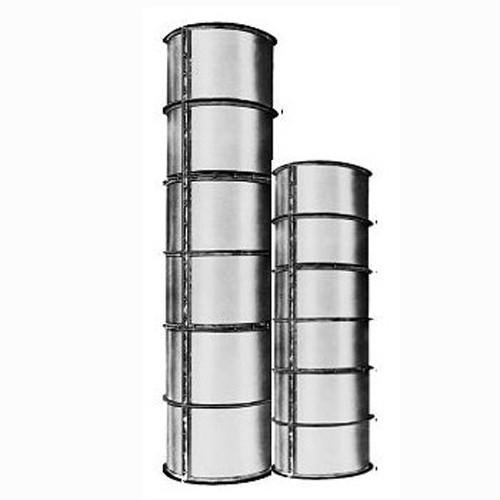

Heavy Duty Steel Column Form for Concrete Forming, 34in Dia X 1ft
Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.
Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.
In addition to the standard column diameters shown, custom diameters and lengths are also available.
Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.
Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.
The Heavy Duty Steel Column Form for Concrete Forming, 34in Dia X 1ft, offered by Deslauriers, is a durable and reliable solution for creating smooth and sturdy concrete columns. These forms are designed to provide an exceptionally smooth and hard surface, ensuring that your concrete columns are void-free and seamless.
The column forms are made from galvanized constant radius steel half round sections and quarter round sections for forms over 48" in diameter. These sections are bolted together to create units that can be easily handled with a crane on the jobsite. Connecting the vertical and horizontal seams with high-speed bolts allows for quick and efficient setting and stripping.
In addition to the standard column diameters available, Deslauriers also offers custom diameters and lengths to meet your specific project requirements. However, it is important to note that the lateral pressure on the forms should not exceed 3000 PSF on forms up to 36" in diameter or 2000 PSF on forms over 36" in diameter.
To facilitate lifting and handling, most 4ft and 8ft forms come with built-in 1-1/2" lifting holes. Each hole is designed to support a weight of 4000 pounds or a total of 8000 pounds when assembled. Deslauriers recommends using a lifting spreader bar for lifting all column forms, ensuring safe and secure handling.
To assist you further, Deslauriers provides a Forming Manual, which offers detailed instructions and guidance on using their products. They also offer a List of Standard Rental Forms, allowing you to easily access the forms you need for your project. Additionally, their website features a full line of Concrete Forming accessories and Concrete Tremie Pipe and Products, providing a comprehensive range of solutions for your concrete forming needs.
With its heavy-duty construction, smooth finish, and easy handling features, the Heavy Duty Steel Column Form for Concrete Forming is the ideal choice for constructing strong and seamless concrete columns. Trust Deslauriers to deliver high-quality products that meet your construction needs.
