Steel Column Form for Concrete Forming, 30in Diameter x 2ft

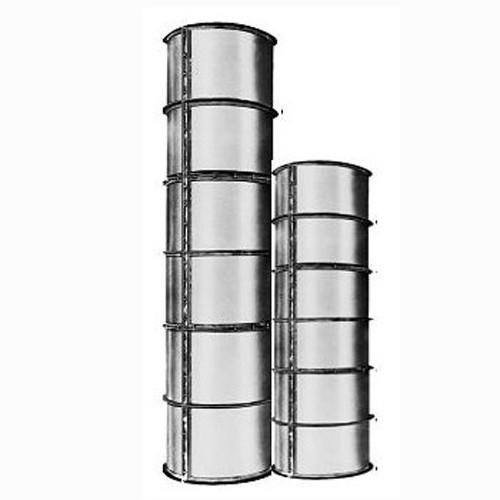

Heavy Duty Steel Column Form for Concrete Forming, 30in Dia X 2ft

Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.

Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.

In addition to the standard column diameters shown, custom diameters and lengths are also available.

Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.

Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.

 Deslauriers Forming Manual





 List of Standard Rental Forms





 Steel Column Forms



View full line of Concrete Forming items and Concrete Tremie Pipe and Products

The Deslauriers Heavy Duty Steel Column Form is the perfect solution for all your concrete forming needs. With its exceptional smooth and hard surface, this form produces results that are remarkably void-free and seamless.

The form is made from galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) that are bolted into units for easy crane handling on the jobsite. This makes setting up and stripping the form a breeze, as the vertical and horizontal seams can be quickly opened and closed with the high-speed bolts provided.

Not only does the Deslauriers Heavy Duty Steel Column Form come in standard column diameters, but custom diameters and lengths are also available upon request. This allows you to tailor the form to your specific project requirements.

When using the Deslauriers Heavy Duty Steel Column Form, it is important to note that the lateral pressure should not exceed 3000 PSF on forms up to 36" in diameter, or 2000 PSF on forms over 36" in diameter. This ensures the safety and durability of the form during the concrete pouring process.

To further enhance the convenience of using the Deslauriers Heavy Duty Steel Column Form, it is equipped with built-in 1-1/2" lifting holes on most 4ft and 8ft forms. These lifting holes have a design load capacity of 4000 pounds per hole or 8000 pounds when assembled. For best results, Deslauriers recommends using a lifting spreader bar for lifting all column forms.

For additional information and resources, you can refer to the Deslauriers Forming Manual, which provides comprehensive guidance on using their products. They also offer a list of standard rental forms and a guide specifically focused on steel column forms.

Explore the full range of Deslauriers Concrete Forming items and Concrete Tremie Pipe and Products to find everything you need for your concrete construction projects. Don't settle for anything less than the best when it comes to your concrete forming needs – choose the Deslauriers Heavy Duty Steel Column Form for exceptional results every time.
