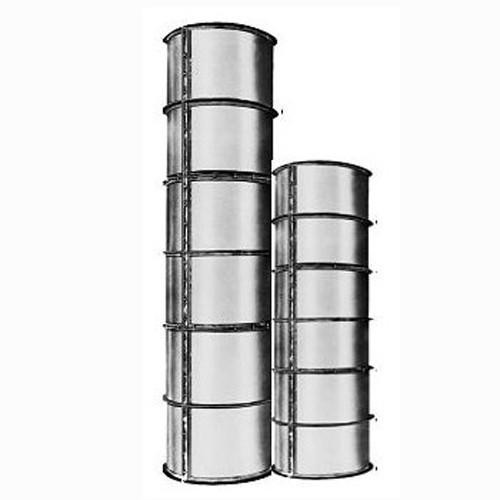

Heavy Duty Steel Column Form for Concrete Forming, 20in Dia X 4ft
Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.
Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.
In addition to the standard column diameters shown, custom diameters and lengths are also available.
Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.
Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.
The Heavy Duty Steel Column Form for Concrete Forming, 20in Dia X 4ft, offered by Deslauriers, is a high-quality and durable solution for creating smooth and seamless concrete columns.
Made from galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter), these forms are designed to provide an exceptionally smooth surface, free of voids and with a limited number of indistinct seams. This ensures a professional finish for all concrete projects.
These column forms are easy to handle on the jobsite, as they are bolted into units for crane handling. Vertical and horizontal seams, which are opened and closed with each pour, are connected with high-speed bolts for fast setting and stripping.
In addition to the standard column diameters available, Deslauriers also offers custom diameters and lengths to meet the specific needs of each project.
The Heavy Duty Steel Column forms have a maximum lateral pressure recommendation of 3000 PSF for forms with a diameter up to 36", and 2000 PSF for forms over 36" in diameter.
For convenient lifting, most 4ft and 8ft column forms come with built-in 1-1/2" lifting holes. The lifting design can support 4000 pounds per hole or 8000 pounds when assembled. Deslauriers recommends using a lifting spreader bar for lifting all column forms.
To learn more about how to use these forms efficiently and effectively, you can refer to the Deslauriers Forming Manual, available in PDF format on their website. You can also find additional resources and information, such as the Steel Column Forms PDF, to further enhance your knowledge of concrete forming.
Deslauriers also offers a full line of concrete forming accessories and concrete tremie pipe and products for your concrete construction needs. Additionally, you can check out the popular Bon Tool 12-700 Concrete Form - Straight Steel - 10' X 4" on their website.
For more information and helpful tips about concrete forming, you can visit their blog and read articles such as "Concrete Form Tools for a Flawless Pour: A Guide" and "What are Concrete Forms: 11 Things You Need to Know."
With the Heavy Duty Steel Column Form for Concrete Forming, 20in Dia X 4ft, you can achieve superior results in your concrete projects with ease and efficiency.
