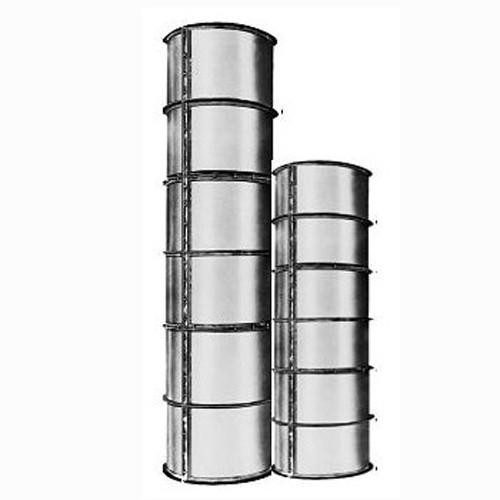

Steel Column Form for Concrete Forming, 16in Diameter x 8ft

Heavy Duty Steel Column Form for Concrete Forming, 16in Dia X 8ft

Deslauriers Heavy Duty Steel Column forms develop an exceptionally smooth, hard surface remarkably free of voids and with a minimum number of indistinct seams. The forms are galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) bolted into units for crane handling on the jobsite.

Vertical and horizontal seams, opened and closed with each pour, are connected with high speed bolts to speed setting and stripping.

In addition to the standard column diameters shown, custom diameters and lengths are also available.

Lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter.

Built-in 1-1/2" lifting holes on most 4ft and 8ft forms. Lifting design of 4000 pound per hole or 8000 pounds assembled. Deslauriers recommends using lifting spreader bar for lifting all column forms.

 Deslauriers Forming Manual

 Steel Column Forms



View full line of Concrete Forming items and Concrete Tremie Pipe and Products

The Heavy Duty Steel Column Form for Concrete Forming is the perfect solution for creating smooth, durable columns with a minimum number of seams and voids. Designed by Deslauriers, a trusted name in the construction industry, these column forms are made from galvanized constant radius steel half round sections and quarter round sections (for forms over 48" in diameter) that are bolted into units for easy handling on the job site.

With each pour, the vertical and horizontal seams of the forms are opened and closed, and they are connected with high-speed bolts for quick setting and easy stripping. This saves you valuable time during the construction process. Plus, if you need custom diameters or lengths, we can accommodate your specific requirements.

When using these column forms, it is important to note that the lateral pressure should not exceed 3000 PSF on forms through 36" diameter or 2000 PSF on forms over 36" diameter. This ensures the stability and integrity of the forms during the concrete pouring process.

Many of the 4ft and 8ft forms come with built-in 1-1/2" lifting holes, allowing for easy transportation and positioning on the job site. These forms have a lifting design of 4000 pounds per hole or 8000 pounds when assembled. For optimal safety, Deslauriers recommends using a lifting spreader bar for lifting all column forms.

For more information on how to use these column forms effectively, you can refer to the Deslauriers Forming Manual. This comprehensive guide provides detailed instructions and helpful tips for achieving the best results with our products. Additionally, you can explore our full line of concrete forming accessories and tremie pipe and products to complete your construction projects effectively and efficiently.

Invest in the Heavy Duty Steel Column Form for Concrete Forming from Deslauriers and experience the difference in quality and performance. With our reliable products, you can create strong, durable columns that will stand the test of time.
