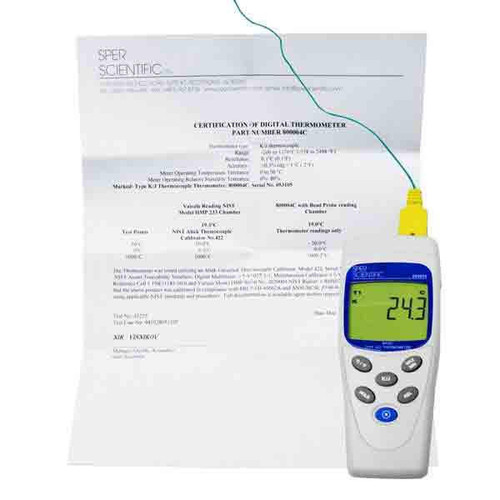

2 Channel Thermocouple Thermometer with NIST, Type K/J

2-Channel Thermocouple Thermometer with NIST Certification (Type K/J)

The 2-Channel Thermocouple Thermometer is a compact, lightweight, and affordable solution for accurate and reliable temperature measurement. Designed for professionals and enthusiasts alike, this thermometer offers the versatility and range of both Type K and J thermocouples, making it ideal for a variety of applications including laboratory use, industrial processes, and field measurements.

Key Features:

• Dual-Channel Functionality: Model 800007 allows simultaneous readings from two probes and displays the temperature difference (T1-T2) in real-time.
• Versatile Measurement Range:
  • Type K: -200 to 1370°C (-328 to 2498°F)
  • Type J: -200 to 1050°C (-328 to 1922°F)
• High Accuracy:
  • Within the range of 23 ± 5°C (<80%RH), accuracy is ±0.05% of reading + 0.7°C (1.4°F).
  • Outside the specified range, the accuracy is 0.01% of the reading + 0.03°C for each °C deviation.
• Advanced Features: Includes relative, min/max/average temperature readings, hold function for freezing measured values, and touch-tone buttons for ease of use.
• Clear Display: Large 1¼" x 1¾" LCD screen for easy reading of results.
• User Calibration: Easily calibrate the device to an ice point or any other standard as needed for specific applications.

Accessories and Documentation:

• Comes complete with:
  • Two Beaded Wire Probes
  • 9V Battery
  • NIST-Traceable Certificate of Compliance (optional)
• Compact and portable design:
  • Dimensions: 5¼" x 2¼" x 1¼" (133 x 57 x 32 mm)
  • Weight: 6 oz (170 g)

NIST Certification and Calibration:

For those requiring precision, each thermometer can be calibrated and tested in our in-house lab to ensure it meets or exceeds published specifications. All calibrations are traceable to the National Institute of Standards and Technology (NIST), providing confidence in your measurements. Certified products include:

• Serial Number
• Certification Label
• Certification Testing Report

Operating and Storage Environments:

• Operating Conditions: 5°C to 40°C (41°F to 104°F), RH < 80%
• Storage Conditions: 10°C to 60°C (14°F to 140°F), RH < 70%

Applications:

This thermometer is ideal for a wide range of uses, including:

• Industrial processes
• Food safety and preparation
• HVAC/R diagnostics
• Laboratory experiments
• Environmental monitoring

Whether you're a professional in need of high-accuracy readings or a technician requiring dual-channel capabilities, the 2-Channel Thermocouple Thermometer with NIST certification is designed to deliver reliable performance every time.
