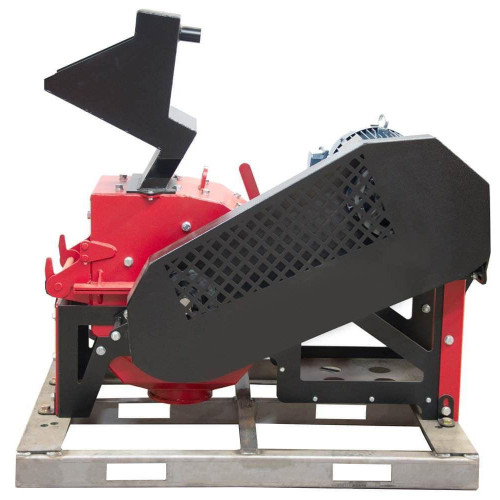

Portable Hammermill Crusher with Electric Motor

Portable Hammermill Crusher with Electric Motor

Introducing the Portable Hammermill Crusher with Electric Motor, an indispensable tool engineered for high-efficiency material reduction across various industries. This robust crusher is designed to process a wide range of materials, including bulk aggregates, minerals, and ores, transforming them from a maximum feed size of 2in (51mm) down to fine particles as small as No. 80 (0.2mm).

Precision in particle sizing is achieved through an intuitive system of interchangeable screen inserts. Each Portable Hammermill Crusher includes your choice of one standard screen, with popular options being the No.35 (0.5mm) or No.20 (1.0mm) screens. For specialized applications, a comprehensive selection of optional screens with openings ranging from 0.125 to 0.3in (3.18 to 0.75mm) is available separately, ensuring unparalleled versatility. All screens are meticulously laser-cut from 0.25in (6mm) durable steel, guaranteeing exceptional longevity and consistent performance even under demanding conditions.

Experience impressive operational efficiency with a throughput capacity of approximately 1 to 2 tons (907–1,814kg) per hour. The crushing mechanism features ten 1.5in (38mm) wide, 8lb (3.6kg) hammers, expertly crafted from wear-resistant high-chrome steel, designed for extended service life and reduced maintenance. To further maximize production rates and hammer longevity, feeding material with a size of 1in (25mm) is recommended. A significant advancement in design, our newly-designed, patent-pending non-slip disc system revolutionizes hammer replacement, allowing a complete change-out of all hammers in under ten minutes, dramatically minimizing downtime.

The structural integrity of the Portable Hammermill Crusher is built for endurance. It boasts a heavy-duty 2in (51mm) diameter drive shaft, ensuring reliable power transmission. Internal wear plates, crucial for protecting the crusher's core, are 0.374in (9.5mm) thick and constructed from high-performance 400 Brinell Hardness material, offering superior abrasion resistance and extended operational life.

This model, the Portable Hammermill Crusher with 15hp Electric Motor, is equipped with a powerful 15hp electric motor. This motor can be conveniently configured for 3-phase electrical supplies ranging from 208V to 460V, providing adaptability to various industrial power infrastructures.

Key Features of the Portable Hammermill Crusher:

• Versatile Feed Capacity: Handles maximum feed material sizes up to 2in (51mm).
• Adjustable Output Fineness: Produces fine particles down to No. 80 (0.2mm) with interchangeable screens.
• High Throughput: Delivers 1 to 2 tons (907–1,814kg) of processed material per hour.
• Durable Hammers: Equipped with ten 8lb (3.6kg) high-chrome steel hammers for extended wear.
• Rapid Hammer Change: Patent-pending non-slip disc system allows hammer replacement in less than ten minutes.
• Robust Construction: Features a 2in (51mm) drive shaft and 0.374in (9.5mm) 400 Brinell Hardness wear plates for maximum durability.
• Customizable Screens: A choice of one standard screen included, with optional screens available for precise sizing.
• Industrial Power: 15hp electric motor configurable for 3-phase, 208-460V power.

What's Included:

• Portable Hammermill Crusher, powered by a 15hp electric motor.
• (10) High-chrome steel, 8lb (3.6kg) hammers.
• Choice of one standard screen insert (No.35 or No.20).

Technical Specifications for Portable Hammermill Crusher with Electric Motor:

• Maximum Particle Size: 2in (51mm)
• Max. Feed Capacity: 1 to 2 tons (900 to 1,800kg) throughput per hour
• Final Output Size: As fine as No.80 (0.2mm)
• Hammer Composition: (10) High-Chrome Steel, 1.5in (38mm) wide Hammers
• Typical Applications: Bulk aggregates, minerals, ores, construction materials
• Electrical Requirements: 15hp Electric / 18.2 Amp / 3 Phase (Configurable for 208-460V)
• Product Dimensions (WxDxH): 56 x 33 x 53in (1422 x 838 x 1346mm)
• Total Weight: 1500.0lb (680.40kg)
