Poly VI High Pressure Closed End Boot Seal (Case of 25)

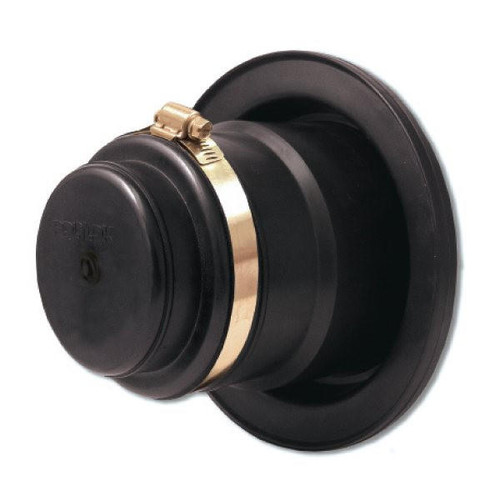

Polylok 3005-CE Poly VI High Pressure Closed End Boot Seal (Case of 25)

Like the Poly III, the Poly VI Closed Ended Boot Seal is the only patented closed end seal on the market. The Poly VI makes it easy to vacuum test because there are no openings to plug. It accepts either 4" or 6" pipe. It also meets ASTM C-923 specifications and can fit in a 3" - 6.5" wall.

Poly VI Closed End Boot Seal meets or exceeds all requirements of the following standards, codes, specifications and/or test methods:

• ASTM C 1227
• ASTM C 1644
• ASTM C 923
• ASTM C 1244
• NPCA Best Practices
• NOWRA Model Code

• Accepts 4" or 6" pipe
• Seal can be used in tanks with 2 1/2" - 6" wall thickness
• Quick and easy installation of seal to mandrel
• No openings in Poly VI Seal until ready to connect (no plugs necessary for vacuum testing)

Installation Instructions for Poly VI High Pressure Pipe Seal:

1. Attach mandrel to outside form wall
2. Fold seal into casting position
3. Place gasket on mandrel
4. Pour concrete into form
5. Strip form
6. Insert 4" or 6" pipe and tighten take-up clamp

The Polylok 3005-CE Poly VI High Pressure Closed End Boot Seal, available in a case of 25, is a revolutionary product designed to meet the highest industry standards for sealing and testing pipes. Its unique closed end design eliminates the need for plugs during vacuum testing, making the process hassle-free.

Crafted to accept both 4" and 6" pipes, the Poly VI Boot Seal is incredibly versatile and can be used in a wide range of applications. Meeting ASTM C-923 specifications and suitable for walls ranging from 3" to 6.5" in thickness, this seal excels in performance and durability.

Compliant with various standards and codes such as ASTM C 1227, C 1644, and C 1244, the Poly VI Boot Seal ensures reliability and quality in every use. Whether for commercial or residential projects, this seal offers quick and easy installation, providing a secure connection for pipes.

The Poly VI High Pressure Closed End Boot Seal comes with clear installation instructions, simplifying the process for users. By attaching the mandrel, folding the seal into position, and pouring concrete into the form, you can effortlessly install this seal for a reliable pipe system.

For detailed specifications and certifications, you can refer to the downloadable resources provided on the official Polylok website, ensuring complete information and peace of mind with your purchase of the Polylok 3005-CE Poly VI Boot Seal. Elevate your piping systems with the innovative design and superior performance of the Poly VI Closed End Boot Seal.
