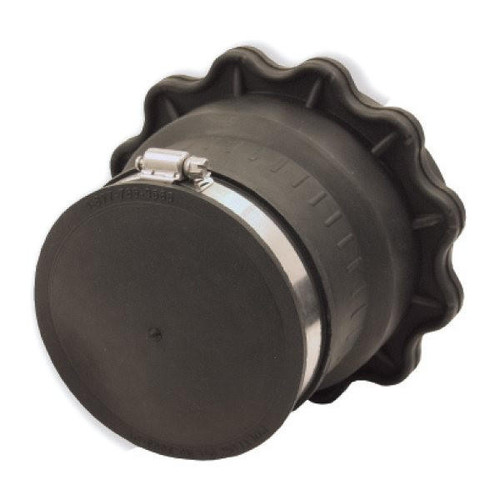

Poly IV High Pressure Closed End Boot Seal (Case of 25)

Polylok 3003-CE (Poly IV High Pressure Closed End Boot Seal (Case of 25)

Need to vacuum test or water test your tanks? This is the best seal on the market today for vacuum testing and water testing tanks. It is designed with a closed ended, so it is no longer necessary to plug seal holes before testing. And, it's easy to cut the seal at the installation site. In addition, this new seal is longer than our other seals, making it even easier to install.

Poly IV Closed Ended Boot Seal meets or exceeds all requirements of the following standards, codes, specifications and/or test methods:

• ASTM C 1227
• ASTM C 1644
• ASTM C 923
• ASTM C 1244
• NPCA Best Practices
• NOWRA Model Code

• Fits onto many existing open-end boot tank mandrels
• Allows tanks to be easily vacuum and water tested
• Accepts 4" SCH 40 or SDR 35 pipe
• Can be cast in walls 2 1/2" - 10" in thickness
• First orders will receive FREE mandrels

Installation Instructions for Poly IV High Pressure Pipe Seal:

1. Attach mandrel to outside form wall
2. Fold seal into casting position
3. Place gasket on mandrel
4. Pour concrete into form
5. Strip form
6. Insert 4" pipe and tighten take-up clamp

The Polylok 3003-CE (Poly IV High Pressure Closed End Boot Seal) is a cutting-edge product designed for those needing to vacuum test or water test tanks. As a market-leading seal, the Polylok 3003-CE eliminates the need to plug seal holes before testing thanks to its closed-ended design. This innovative feature simplifies the testing process, saving time and effort.

With a longer length than other seals in its range, the Poly IV Closed End Boot Seal ensures easier installation. It is compatible with various open-end boot tank mandrels, accepting 4" SCH 40 or SDR 35 pipe fittings. This versatile seal can be cast in walls ranging from 2 1/2" to 10" in thickness, offering flexibility in tank construction.

Meeting or exceeding the standards of ASTM, NPCA Best Practices, and other specifications, the Polylok 3003-CE guarantees quality and reliability. The seal comes with FREE mandrels for initial orders, enhancing its value proposition.

For seamless installation, follow the provided instructions by attaching the mandrel to the outside form wall, folding the seal into position, and placing the gasket before pouring concrete. Once the form is stripped, insert the 4" pipe and tighten the take-up clamp for a secure fit.

Certified by 2018_Certificate_of_Compliance, the Polylok 3003-CE is backed by detailed specifications, installation guides, and compliance documents. Trust in the Poly IV High Pressure Closed End Boot Seal for efficient tank testing and reliable performance.
