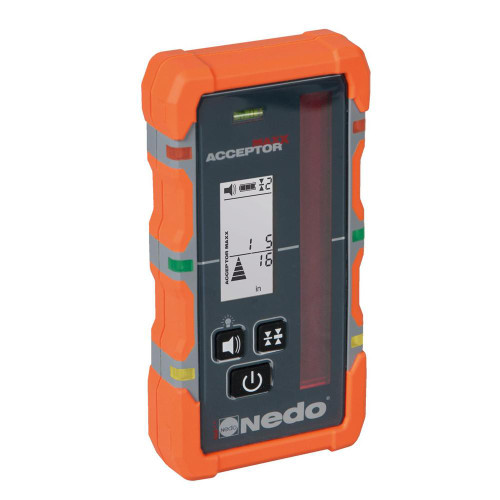

NEDO ACCEPTOR MAXX Laser Receiver with Digital Readout

Rugged Laser Receiver with Extra-Large Detection Area

The Nedo ACCEPTOR MAXX is a durable laser receiver designed for tough environments, featuring a digital elevation readout and a large detection field. Its rugged construction, combined with the virtually indestructible Nedo heavy-duty rod clamp, makes it ideal for demanding job sites.

The receiver includes large, illuminated digital LC displays on both the front and back, showing elevation measurements in inches, feet, inches & fractions, and millimeters. There's no need to go "on-grade" as the display provides clear, precise readings. Directional arrows and bright LEDs also indicate the receiver's position relative to the laser plane, and thanks to its clever design, the LEDs are visible from both the front and the side.

An optional acoustic signal further simplifies positioning, making the ACCEPTOR MAXX a reliable choice for accurate and efficient laser level work.

Key Features:

• Compatible with all rotating lasers with a red laser beam
• Large, illuminated displays on the front and back
• Digital elevation readout in multiple units (inches, feet, fractions, mm)
• Proportional directional arrows for precise alignment
• Bright LEDs visible from the front and side
• Four on-grade accuracy settings
• Energy-saving mode with optional display illumination
• Battery status indicator on the display
• Switchable acoustic positioning signal
• Built-in bubble for easy alignment
• Automatic shut-off after 15 minutes
• Includes Nedo heavy-duty rod clamp and batteries as standard

The ACCEPTOR MAXX is built to withstand the toughest conditions while delivering reliable performance on every job.

Specifications:

Accuracy         switchable, ±1 mm (~1/16”), ±2 mm (~1/8”), ±4 mm (~3/16”) and ±8 mm (~5/16”)

Working range Ø 2950 ft (depends on laser)

Length detector field  5“ / 120 mm

Reception angle          ± 45°

Protection class           IP 67

Operating temperature          -4 F to +140 F (-20° C to +60° C)

Power supply  2 x 1.5 V type mignon (AA)

Operation duration     approx. 60 h
