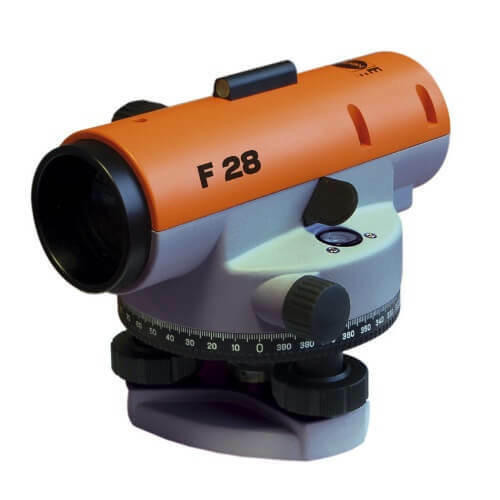

Nedo F Series 28X Automatic Builder's Level Model Number: F28
The Nedo F-series Builders Level features first-class German optics, a rugged full metal housing, and a top quality air-damped compensator.
Description:
Description:
- Automatic builder’s level with 28x magnification
- Bright optics with large objective aperture
- Sturdy, reliable magnetic-damped compensator
- Sturdy metal housing
- High-contrast image
- Made in Germany
- Optics: upright
- Magnification: 28x
- Stadia Feature for Measuring Distance 1:100 Ratio
- Clear objective aperture: 1.2'' / 30 mm
- Shortest focusing distance: 23.6'' / 0.6 m
- Additive constant: 0
- Multiplication factor: 100
- Compensator operating range: ±15'
- Setting accuracy: ±0.3''
- Horizontal circle: 360°
- Accuracy 1 km Double run leveling standard Deviation: ±0.08'' /±2.0mm
- Protection class: IP 54
- Weight: 2.8 lbs. / 1.26 kg
- Connecting thread: 5/8"x11
- Nedo F28 Automatic Builder's Level
- Carrying Case
- Lens Cover
- Plumb Bob
- Allen Key
- Adjusting Pin
- One Year Manufacturers Warranty
