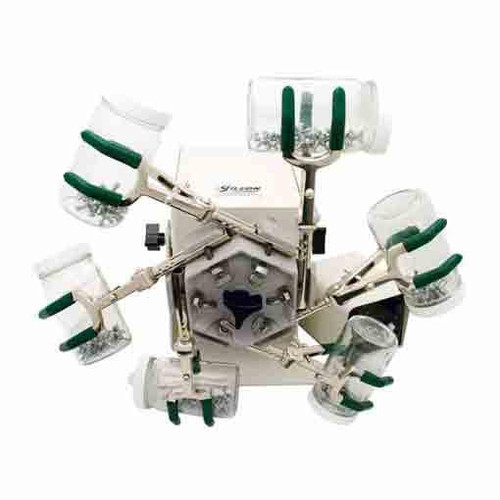

Mini Mixing Wheel: Precision Sample Preparation
The Mini Mixing Wheel is expertly designed for thoroughly preparing coal samples for testing, but is also versatile enough for mixing a variety of other granular materials. This robust unit rotates up to six 8oz (237ml) sample jars, ensuring uniform and consistent mixing for accurate analysis.
Its adjustable speed range of 10–60rpm allows you to customize the rotation speed to match your specific material and testing requirements. The large, easy-to-use three-finger thumbscrew clamps secure the sample bottles at a fixed 45° angle, precisely meeting the specifications of ASTM D2013 for preparing coal samples for analysis. The clamps can also be adjusted to hold bottles at any other required angle.
Built for stability and durability, the sturdy steel frame is painted for corrosion resistance and features resilient rubber feet to prevent slipping during operation. For added safety and convenience, the unit includes a 6ft (1.8m) three-wire cord with an attached speed control module, allowing the operator to adjust settings at a safe distance from the rotating wheel. The reliable, continuous-duty motor is powerful enough to rotate containers with diameters up to 3.5in (89mm), handling your samples with ease.
Key Features:
- Variable Speed Control: Adjustable speed from 10-60rpm to suit different materials.
- Safe Operation: Separate speed control module with a 6ft cord keeps hands away from the rotating mechanism.
- High Capacity: Rotates up to six 8oz (237ml) sample jars simultaneously.
- ASTM Compliant: Thumbscrew clamps lock bottles securely at a 45° angle to meet ASTM D2013 standards.
- Flexible Placement: Designed for benchtop use or can be wall-mounted to save space.
- Durable Motor: Continuous-duty motor provides reliable, long-term performance.
Specifications:
- Electrical: 120V / 60Hz / 2Amps
- Product Dimensions (WxDxH): 9.5 x 10 x 10in (241 x 254 x 254mm)
Meets Test Method:
Recommended Accessories:
- 230V Transformer: Allows for seamless operation on 230V power supplies.
- Sample Glass Jars: 8oz wide-mouth jars with screw-on caps, perfectly sized for the wheel.
- Jack Rocks: Can be added to samples to accelerate and enhance the mixing process for certain materials.
