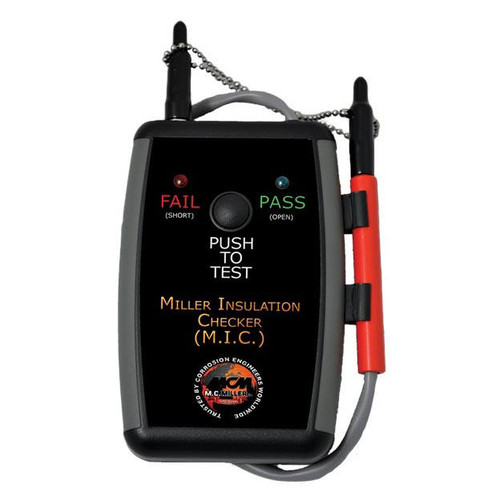

M.C. Miller 1200 M.I.C. (Miller Insulation Checker)

All new M.C. Miller meters come with a Calibration Certificate.

M.C. Miller has developed a digital insulation tester, the DIGITAL Above Ground Insulation Checker (M.I.C), which is:

Features:

• COMPACT- Fits in your hand or in your back pocket

• SIMPLE TO USE- Bright Pass/Fail LEDs for fast results

• EFFICIENT- “Push-To-Test” button saves power when idle, extends battery life

Additional Information:

• Uses Radio Frequency to distinguish between insulation shorts and shorts on piping

• Checks all types and sizes of insulators - Flanges, dressers, couplings or unions - parallel or series

• Finds shorted bolts - Eliminates replacing good bolt insulators

• Evaluates partially shorted insulators

• Easy to use- Clear instructions reduces training time

• Fast- “touch probe” operation eliminates guesswork and extra wires, coils, etc.

Specifications for Ground Insulation Checker

• Enclosure: Electronic instrument enclosure. Molded in flame retardant ABS plastic.

• Power Source: Two AA size alkaline batteries with extended battery life

• Operating Temperature Range (alkaline battery limited): -4°F to 131°F (-20°C to 55°C)

• Recommended Storage Temperature Range (alkaline battery limited): -4°F to 95°F (-20°C to 35°C)

• Max Dimensions:

  • Length: 6.2 inches (15.8 cm)

  • Width: 3.6 inches (9.1 cm)

  • Depth: 1.5 inches (3.8 cm)

Insulation Testing and Measurement

The Miller Insulation Checker (MIC) is a digital tool for above ground insulation measurement. Using Radio Frequency technology it measures electrical insulation resistance. A must have for detecting insulation defects to prevent electrical shock and equipment damage. It finds partially shorted insulators which can cost you to replace good insulators. Quick and efficient operation means testing is fast and reliable. A must have for electrical professionals.

Applications and Features

The Miller Insulation Checker (MIC) has many applications in the electrical industry, including insulation resistance measurement. Tests and measures insulators, flanges, dressers, couplings and interconnected piping. Eliminates guesswork for accurate and reliable results. Not only for electrical safety but also for compliance to industry standards. Powered by alkaline battery limited, storage temperature range -20°C to 60°C (-4°F to 140°F) and recommended storage temperature range 0°C to 40°C (32°F to 104°F) to extend battery life. Molded in flame retardant ABS plastic case and comes with Calibration Certificate. For electrical professionals, a must have tool that is durable, precise and efficient.

User Guide and Safety Instructions

The Miller Insulation Checker (MIC) is designed with user-friendliness in mind, featuring a simple and intuitive interface that makes it easy to operate. Before using the MIC, it’s crucial to thoroughly read and understand the user guide and safety instructions to ensure safe and effective use.

When operating the MIC, always wear protective gear, including safety glasses and gloves, to safeguard yourself from potential hazards. Remember, the MIC is specifically designed for above-ground insulation measurement and should not be used for underground or submerged applications.

To maintain the accuracy of your readings, ensure that the MIC is calibrated regularly. Keep your calibration certificate up to date to verify the device’s precision. The MIC is powered by an alkaline battery, which has a limited lifespan. Regularly replacing the battery will help you avoid costly and unnecessary replacement.

For optimal performance, store the MIC in a dry, cool place within the recommended storage temperature range of -20°C to 50°C (-4°F to 122°F). Avoid exposing the device to extreme temperatures, moisture, or physical stress, as these conditions can damage the MIC. When not in use, store the MIC in the provided belt carry bag to protect it from potential damage.

Technical Support and Customer Service

M.C. Miller is committed to providing comprehensive technical support and customer service for the MIC. Our team of experts is readily available to address any questions or concerns you may have about the insulation checker.

For technical support, you can reach our dedicated team via phone, email, or online chat. We also offer a variety of resources, including user manuals, instructional videos, and FAQs, to help you maximize the use of your MIC.

In the unlikely event of a fault or issue with your MIC, our customer service team will work diligently to resolve the problem quickly and efficiently. We understand the importance of minimizing downtime, and we offer costly and unnecessary replacement or repair options to get you back up and running as soon as possible.

Our technical support team is also available to provide guidance on calibration, maintenance, and troubleshooting, ensuring that your MIC remains in optimal working condition. At M.C. Miller, we are dedicated to delivering exceptional customer service and support, helping you get the most out of your Miller Insulation Checker.
