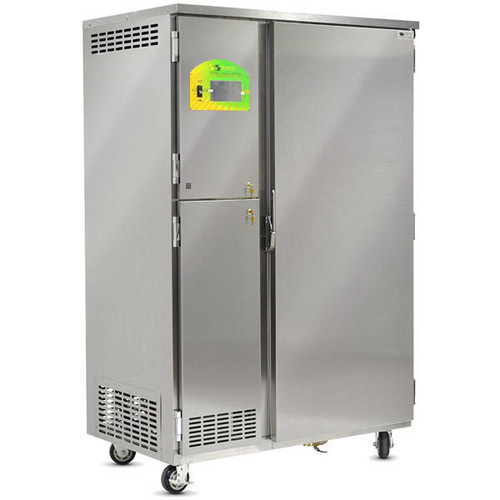

Microprocessor Controlled Germinator, 220 Volt

Seedburo Microprocessor Germinator

Seedburo's Deluxe Microprocessor-Controlled Germinator provides unmatched consistent reproducible environmental conditions automatically for uninterrupted operation. The "user-friendly" state-of-the-art "touch-screen" is easy to use and allows the control of almost any combination of temperature, light intensity, humidity parameter and time options, with greater accuracy than typical electromechanical controlled units.

This large and highly advanced test chamber is extremely versatile, meeting many test requirements that may require a controlled single set point temperature, alternating temperature patterns, light, dark or alternating light periods. Accurate and reliable controls are independent and offer a variety of ways to use this chamber, making this an excellent choice for running special tests, as well as the ability to easily store and retrieve repetitive test procedures. With the use of the built-in printer, the recorder insures that immediate and accurate test data is recorded permanently for clear interpretation.

Applications of the MPG-3000 versatile testing chamber would typically include meeting specific requirements of temperatures, humidity and light level intensity, such as: pre-chiller, seed germination, seed tests and research, plant test and research, plant growth, propagation, accelerated aging, photo stability tests, zoology, botany, tetrazolium, biological research and tissue cultures tests.

The "Flo-Thru" air distribution system is comprised of an independent heating system, a separate cooling system, as well as a humidification water atomizer. All components are self-contained, completely enclosed for operator safety. The air pattern that is created circulates conditioned air throughout the chamber and assures minimal temperature variance between test trays. The MPG-3000 is equipped with an interior full-view see thru split doors, for periodic inspection of samples with minimal disruption to the temperature/humidity balance in the interior chamber. Test trays are perforated for greater air flow and are constructed of stainless steel, that prevent rusting or mineral deposit build-up, making cleaning simple.

MPG3000 is constructed entirely of high-grade commercial type 304/18-8 stainless steel, including rigid tubular and welded base frame, for greater durability, easy cleaning and prevention of rodent infestation. Outer doors have magnetic gasket seals and heavy duty polished hardware.

Features

Instrumentation

• Lighted on/off switch
• Programmable touch screen
• PLC data storage, USB downloadable

Control Panel

• Touch screen controller: Large full color display for easing programming of: Relative humidity, Temperature, Test and Cycle(s), Time Remaining, Program Recall, Editing, Time of Day, Test Duration, Run/Program, or Auto/Manual modes (F/C, Real Time Clock, Data Download Function, Heat/Cool and Light/Dark Level(s)
• Simple on/off switch
• USB data/printer port

Temperature, Humidity and Lighting

• Temperature range: 1.6°C–54.4°C (35°F–130°F), Precision: 1-degree increments ±2°, Uniformity: ±7°F
• Wet Range: 0–95% sprays water on time and duration, active humidity based on Rh set point desired
• Light Level Adjustable: Off/Low/Medium/High
• Low: Two strips of LEDs, 1800 lumen each (total of 3600 lumen)
• Medium: four strips of LEDs, 1800 lumen each (total of 7200 lumen)
• High: Six strips of LEDs, 1800 lumen each (total of 10,800 lumen), 6500°K wavelength, illumination color white, highly reflective stainless steel surfaces for greater light spread

Interior Capacity

• Capacity: 25.6 Cubic ft.
• Interior Dimensions: 291/2" (L) x 251/2" (W) x 61" (H)
• Trays: 10 included, perforated aluminum 20.0" x 25.375", can hold 40 trays on 1.5" spacing

Specifications

• Net wt: 725 lbs
• Actual dims: 53" (L) x 32.9" (W) x 81.7" (H)
• Ship/Export wt: 1150 lbs, Ship/Export dims: 58" (L) x 40" (W) x 92" (H).

Models

• MPG3000/B: Microprocessor Germinator, 115V, 60Hz
• MPG3000/C: Microprocessor Germinator, 230V, 50Hz
• MPG3000/E: Microprocessor Germinator, 230V, 60Hz

Note: domestic/export crating must be selected with the items above.

• MPG/EX: Domestic / Export Crating For Microprocessor Germinator

Accessories

• MP6: Extra Trays, 20" x 25.375"
