What is Anchor Testing?

Anchor testing is a critical process in the construction industry to ensure the safety and reliability of structures by testing the holding power of anchors and fixings in various construction materials. Anchor testers like the universal anchor tester are used to bond strength between two layers, including concrete structures and to validate the correct installation of existing fixings. Anchor testers can test up to 35kN/7,868 lbf, making them essential for construction professionals. Anchor testers can test a wide range of anchors including those used in scaffolding. Scaffold anchors and fixings are tested to ensure safety and compliance to industry standards and this ensures compliance to industry regulations.

Humboldt HC-2960 Overview

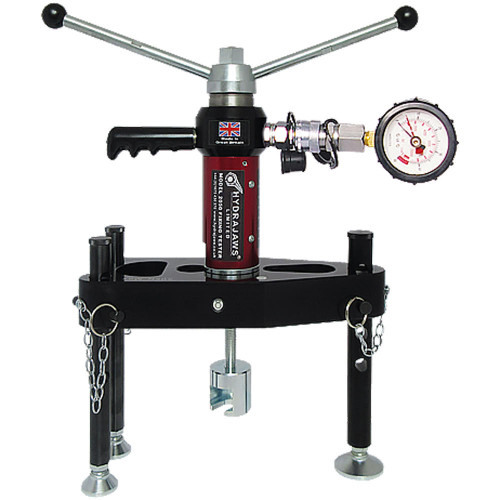

The Humboldt HC-2960 is a medium duty anchor tester to test the holding power of anchors and fixings in various materials. As part of the Humboldt range of anchor testers the HC-2960 is ideal for verifying anchor installations can withstand a specific pull out load. Whether in the lab or on site, this portable, self-contained tester is a must have for anchor system testing.

Meets the following materials standards: ASTM D4541, ASTM D7234

The medium duty tester kit sits in the middle of the testing range 30kN to 50kN. This tester kit uses advanced hydraulics to accurately register the load applied to construction fixings or during concrete compression tests. It can cover a range of loads from 0 to 50kN, making it versatile and effective for various applications with tools like the K Slump Tester used for concrete testing. Although it looks similar to the 25kN models, internal components have been upgraded. To take the 50kn load the HC-2960 has a reinforced load spreading bridge with three extended length legs which can be adjusted to six positions using an integral pin system. An upgraded turning handle is used to match the higher loads and an M24 operating nut is included to use with a ratchet wrench for use in confined spaces.Kit includes**:** Tester body and operating nut; Analog gauge (0-50kN); Spreading bridge with telescopic legs and hardened pins; Turning handle with integral 24mm Nut; M12 locking adapter; Bolt tester adapter; Threaded stud adapters: M16, M20 and M24; Button Adapters: M10, M12 threaded and 6.5, 8.5, 10.5 and 12.5 slotted; Robust carrying case with grab handle

Medium Duty Anchor Test Kit with 50kN Gauge Meets Standards:

• ASTM D4541

• ASTM D7234

• Pull test: Tests the holding power of anchors and fixings in construction. Used to measure the force load applied during push or pull tests across various applications. Measuring the bond strength between coatings and substrates is crucial for evaluating adhesion. During pull-off testing, separation will occur when the applied tensile force exceeds the bond strength.

Medium Duty Anchor Test Kit Equipment with 50kN Gauge Features

• Medium Duty Anchor Test Kit with 50kN Gauge: For general applications.

• Hydraulic Cylinder: Controlled tensile force.

• Fixing Mechanically: The equipment applies tensile loads mechanically to ensure.

• Register: The load is displayed accurately, registering the tensile load through an analogue gauge.

• Compatible: With stud adapters and accessories.

• Full: Comes with all the necessary accessories including extension legs and bond disks.

How to use Medium Duty Anchor Test Kit with 50kN Gauge

1. Choose the correct Stud Adapter: Select the adapter for the anchor being tested.

2. Connect the Stud Adapter: Attach the adapter to the anchor device.

3. Apply Load: Use the hydraulic cylinder to load through the cell.

4. Enable Testing: Utilize specific adaptors or configurations in the equipment, testing for a wider range of applications and meeting various safety requirements.

5. Measure the Load: Measure directly on the anchor with the digital gauge.

6. Note Max Pressure: Record the max pressure to see the crucial holding force of the anchor.

7. Repeat as needed: Multiple times for accurate and consistent results.

   Benefits of Medium Duty Anchor Test Kit with 50kN Gauge

• Accurate Measurements: Holding force of anchors accurately with construction materials testing equipment.

• Compliant to International Standards: Meets standards for anchor testing and includes calibration certificate

• Versatile: Suitable for various materials.

• Safety: Prevents accidents and ensures worker safety in high risk areas.

• QC: For lab and site control.

• Meets Rigorous Demands: Designed to handle substantial loads and ensure safety in critical applications.

• Versatile Set: Includes adaptors that allow for diverse testing capabilities across various fixings and critical safety applications.

• All in One Solution: For safety harness eyebolts, scaffold components, wall ties.

• Bond Strength: Measures bonding strengths and holding power of anchors and fixings.

• Dual Material: For two layers: concrete and repair mortars.

Types of Testers

There are various types of anchor testers available, including digital pull testers, medium heavy testers, and tie scaffold tester kits. The QualiAnchor M35+, for example, is a digital pull tester with dual load capacity options, capable up to 35kN/7,868 lbf. The QualiScaffold M2000 is a tie scaffold tester kit designed to help scaffolders test anchors and fixings safely and efficiently. Anchor test kits, such as the BIGBEN Pull Tester Kit, are also available, providing a range of adaptors for various types of fixings. The HAT 28 Anchor Tester is another example, used for proof loading and determining the pullout resistance of anchors and DX fasteners.

If you need more information, support or want to discuss your specific anchor pull test equipment requirements, please contact us.
