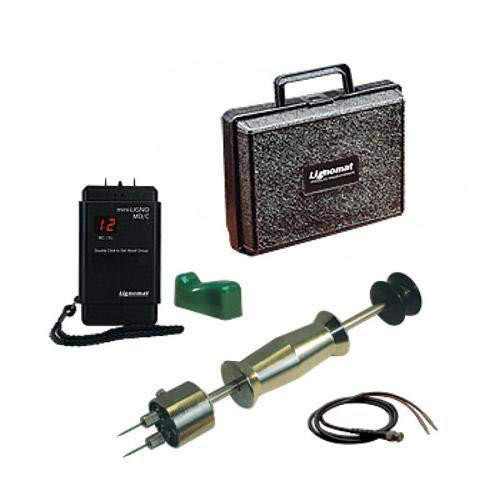

Lignomat M-2M Mini-Ligno MD/C Moisture Meter Kit
Applications
For woodworking and cabinetry, when the integral pins at the mini-Ligno MD do not measure deep enough to reach the core of thick lumber.
Advantages
The mini-Ligno MD/C measures reliably and accurately for a range of 6-25%. High quality, low-cost moisture meter with 2 year warranty. Adding Electrode E12allows accurate surface and core measurements with insulated pins up to 2″ deep. Industry standard for quality control of wood.
| Moisture Meter: mini-Ligno MD/C | |||||
| –Microprocessor-based circuitry assures calibration stability and —accuracy for the life-time of the meter. –Calibration is internally checked and adjusted before each reading. –Measuring range is 6-25% –2 Wood groups for softwoods and hardwoods, wood-based panel —products –Resolution 1% steps over entire range. –Integral pins and connector for external cable built-in |
|||||
| Fast, one-hand operation. Unique shape fits comfortable in your hand when measuring. Pocket-sized. Strap keeps meter handy and safe from being dropped. Green cap serves as gun-type grip for easy probe insertion and covers the pins during transportation. | |||||
| Accessories of Package M-2M |
Item | Qty | |||
| Electrode E12 is equipped with a slide hammer to insert and extract the teflon-coated pins. A BNC connector is mounted at the electrode head to connect the cable. The cable is detachable and included in the package |
E12 | 1 | |||
| Electrode E12 plus 1 pair DZ pins and 1 pair DA pins. Weight 8 oz (260g). Length without pins 6″ (15cm) |
|||||
| mini-BNC Cable mini-BNC cable connects Electrode E12 to mini-Ligno DX/C mini-BNC cable, standard length 3ft (0.9m) available in 6ft length |
m-BNC-3 | 1 | |||
| Case The black hard-shell case comes with a handle and a foam insert for protection. Designed to fit any mini-Ligno with Electrode E12. Size: 13.5″ x 8″ x 3.5″ (35 x 20.3 x 9cm) |
C-M | 1 | |||
