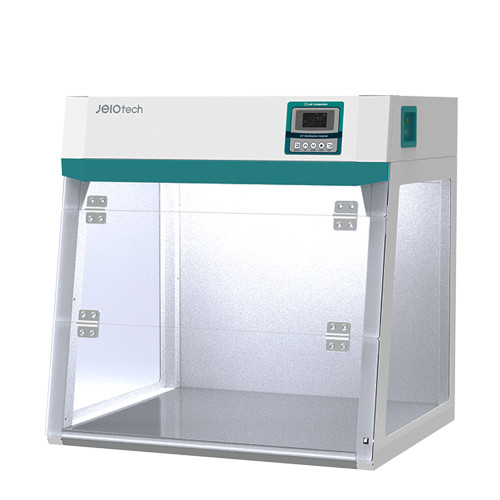

Lab Companion UVC-11 UV Sterilization Cabinet

Lab Companion UVC-11 UV Sterilization Cabinet: Advanced Disinfection for Your Lab

The Lab Companion UVC-11 is a state-of-the-art UV sterilization cabinet designed for effective and safe decontamination of lab equipment, tools, and samples. It provides a controlled environment to eliminate DNA and RNA contaminants, ensuring the integrity of your experiments and preventing cross-contamination in sensitive applications like PCR.

Key Features and Performance

• High-Intensity UV Disinfection: At its core is a powerful, long-life 254 nm UV lamp engineered for maximum germicidal effectiveness. This lamp delivers a consistent UV density of 350 μW/cm², ideal for deactivating a wide range of biological contaminants. The lamp boasts an average lifespan of 8,000 hours, ensuring long-term reliability and reduced maintenance needs.
• Optimal Illumination: The cabinet features a built-in anti-glare LED lamp that provides over 900 lux of bright, even lighting across the workspace. This minimizes shadows, reduces eye strain, and allows for clear visibility while you work.

User-Centric Convenience

• Intuitive Control: A user-friendly, microprocessor-based control panel allows for effortless operation. The digital UV light timer can be set for up to 30 minutes, enabling you to program precise exposure times for consistent and reliable decontamination cycles.
• Durable and Easy to Clean: The work surface is constructed from high-quality grade 304 stainless steel. This material not only offers excellent durability but also high chemical resistance against common organic solvents, making cleanup quick and simple.

Uncompromising Safety

• Automatic UV Shut-Off: An interlocking safety door system immediately cuts power to the UV lamp the moment the door is opened, protecting users from accidental exposure to harmful UV radiation.
• Complete UV Protection: The door and side panels are made from a transparent, UV-blocking polycarbonate that filters out 99.9% of UV rays. This allows for a clear, safe view of the cabinet's interior during operation.
• Built-in Safeguards: The system is equipped with an alarm to alert users of potential UV over-exposure and includes over-current protection to safeguard the unit's electrical components.

Technical Specifications

• Feature:

  • Model: UVC-11

• Illumination:

  • LED Lamp Intensity: > 900 Lux
  • LED Lamp Power: 7 W

• UV System:

  • UV Wavelength: 254 nm
  • UV Density: 350 ± 10% (μW/cm²)
  • UV Lamp Power: 15 W

• Construction:

  • Front and Side Windows: Transparent Polycarbonate
  • Rear Window: Powder-coated steel
  • UV Protection: 99.90%
  • Work Surface: Grade 304 Stainless Steel

• Dimensions:

  • Interior (W×D×H): 583 x 500 x 468 mm / 23" x 19.7" x 18.4"
  • Exterior (W×D×H): 600 x 509 x 610 mm / 23.6" x 20" x 24"

• Weight:

  • Net Weight: 17.5 kg / 38.6 lbs

• Electrical Requirements:

  • (120V, 60Hz): 0.4A
