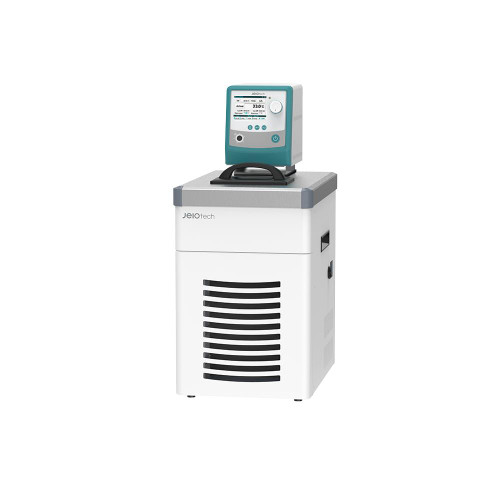

RW3-3025P Refrigerated / Heating Bath Circulator (30L)

RW3-3025P Refrigerated / Heating Bath Circulator (30L)

The RW3-3025P Refrigerated & Heating Bath Circulator (30L) combines precision engineering with advanced technology to deliver exceptional temperature control and reliability. Designed for use with equipment like refractometers and viscometers, this powerful device ensures stable and accurate temperature regulation, even at extremely low temperatures. Whether for laboratory use or industrial applications, the RW3-3025P is built to meet the most demanding requirements. Here’s what makes it stand out:

Key Features

Intelligent Program Control

• 10 customizable programs for temperature ramp-up and dwell control.
• Each program allows up to 10 steps, with a maximum of 99 hours and 59 minutes per step.
• Linkable stored programs for seamless operation.
• Programs can run up to 99 cycles for long-term testing and experiments.
• Pre-heating and heating times can be set before the program starts to save time.

Superior Performance

• Wide Temperature Range: Operates from -25°C to 150°C (-13°F to 302°F) to cater to diverse applications.
• Temperature Stability: Maintains a high accuracy of ±0.05°C (±0.09°F), ensuring consistent results.
• Cooling Capacities:
  • At -20°C (-4°F): 390W
  • At 0°C (+32°F): 570W
  • At +20°C (+68°F): 680W
• PID Microprocessor Control: Features automatic tuning and a three-point temperature calibration for precision.
• Suitable for external and internal applications with a five-speed adjustable pump, including reduced turbulence options for delicate tasks.

Ease of Use

• Intuitive Touchscreen Interface: Equipped with a user-friendly LCD touchscreen with clear icons and logical menus for easy operation.
• Flexible Timer Modes: Dual wait on/off timer options ranging from 1 minute to 99 hours and 59 minutes.
• RS-232 / USB Connectivity: Easily connect for external control and data collection. Includes an RS-232 to USB serial converter.
• Corrosion-Resistant Design: Stainless steel reservoir with round corners for easy cleaning and long-lasting durability.
• Convenient Maintenance: Detachable air filter for condenser cleaning and a quick-release front grill for easier upkeep.
• Mobility Features: Built-in casters and ergonomic side handles make transport and installation hassle-free.
• Eco-Friendly Refrigerants: Utilizes CFC-free refrigerants (R-507, R-404A) with a double service valve to prevent leaks.
• Mobile Monitoring Option: Pair with LC Connected using the LC GreenBox for remote monitoring through a mobile app anytime, anywhere.

Safety First

• Isolated Components: Agitator, heater, and sensor are isolated by a baffle plate to minimize turbulence and ensure user and sample safety.
• Temperature Indicator: A color-coded system displays reservoir temperature at a glance.
• Comprehensive Alarms:
  • Low fluid level and dry-running protection.
  • Over-temperature and over-current warnings.
• Secure Operation: Keypad lock prevents accidental changes, and the splash-proof keypad ensures durability in wet environments.

Technical Specifications

Bath Volume | 30L / 1.1 cu ft

Working Temperature Range | -25°C to 150°C (-13°F to 302°F)

Temperature Stability | ±0.05°C (±0.09°F)

Cooling Capacity | At -20°C: 390W; At 0°C: 570W; At +20°C: 680W

Pump Performance | Max. Pressure: 5.9 PSI (406.8 mbar); Max. Flow Rate: 7.4 gallons/min (28 L/min)

Bath Dimensions | Opening: 300×264mm (11.8×10.4 in); Depth: 230mm (9.0 in)

Overall Dimensions | 440×620×895mm (17.3×24.4×35.2 in)

Net Weight | 67kg (147.7 lbs) |

Electrical Requirements | 230V, 60Hz, 13.5A

Why Choose the RW3-3025P?

The RW3-3025P Refrigerated & Heating Bath Circulator is an all-in-one solution for laboratories and industries requiring precise temperature control. Its ability to maintain stable temperatures across a wide range, combined with ease of use, durability, and advanced safety features, makes it a trusted choice for professionals. From chemical research to material testing and quality control, the RW3-3025P is designed to support your most critical applications with confidence.

Upgrade your lab’s efficiency and performance with the RW3-3025P today!
