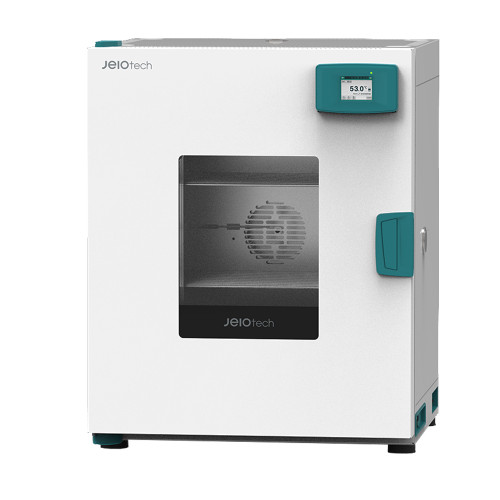

OF4-05VW Advanced Forced Convection Oven (61L, 120V, 60Hz)

OF4-05VW Advanced Forced Convection Oven (61L, 120V, 60Hz)

The OF4-05VW convection oven combines cutting-edge technology with user-friendly design to deliver precision, reliability, and efficiency for a wide range of laboratory and industrial applications. Below are its detailed features and specifications:

Intuitive Control for User Convenience

• 5-Inch TFT Touchscreen Controller: Offers intuitive navigation and real-time access to device information.
• Real-Time Graphs: Easily monitor test progress, events, and alarms at a glance.
• Auto Temperature Recommendations: Based on operating history, the oven suggests three optimal temperature settings without requiring storage or manual input.
• Wait On/Wait Off Timer: Efficiently manage test schedules with customizable timer settings.
• Flexible Ramping Rates: Adjustable (0-9℃ per minute) to suit various test requirements.

Designed for Enhanced Usability

• Opti-Flow™ Technology: Adjust fan speeds according to specimen type and test conditions for improved accuracy.
• Stacking Kit (Optional): Safely stack units to maximize space efficiency and double productivity.
• Hands-Free™ Door System: Easily open the oven door while carrying samples with both hands.

Advanced Monitoring and Connectivity

• Real-Time Monitoring: Stay updated on device performance via BMS (Building Management System) or an optional mobile app with LC Connected.
• USB and RS-232 Ports: Seamless data transfer to PCs for control and management.
• Automatic Data Logging: Test data is saved in CSV format, making it easy to edit and analyze.
• 21 CFR Part 11 Compliance (Optional): Meets GMP audit standards with LC DataKeeper integration, ensuring secure data storage.

Precision Performance and Versatility

• Wide Temperature Range: Operates from ambient +10℃ to 250℃, accommodating a variety of testing needs.
• Three-Point Calibration: Ensures exceptional temperature accuracy across the entire range.
• Uniform Heat Distribution: Delivers ±1.9℃ temperature variation at 100℃, ensuring consistent results.
• Fast Heating and Recovery: Heating time to 100℃ is just 10 minutes, with a recovery time of 4 minutes.

Specifications at a Glance

• Chamber Volume: 61L (2.15 cu. ft.)
• Temperature Fluctuation at 100℃: ±0.3℃ (±0.54℉)
• Heating Time to 100℃: 10 minutes
• Interior Dimensions (W x D x H): 380 x 330 x 480 mm (14.97 x 13.00 x 18.90 in)
• Exterior Dimensions (W x D x H): 558 x 648 x 684 mm (21.97 x 25.51 x 26.93 in)
• Net Weight: 53 kg (116.8 lbs)
• Shelf Load Capacity: 30 kg (66.1 lbs) per shelf
• Air Changes per Hour (at 100℃): 22

Electrical Requirements

• Power Supply: 120V, 60Hz, 12.3 Amps

The OF4-05VW convection oven is a reliable solution for laboratories and industries requiring precise temperature control, advanced monitoring, and efficient workflow. Whether you're conducting research, testing materials, or performing quality control, this oven ensures consistent and accurate results every time.
