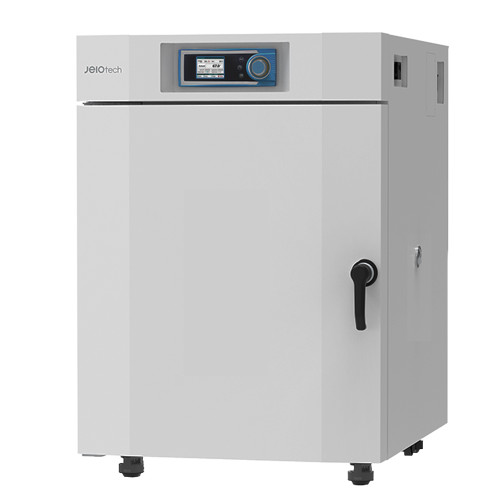

OF3-45P Forced Convection Oven, Program, Solid Door, 450L

OF3-45P Programmable Forced Convection Oven, Solid Door, 450L

The OF3-45P Forced Convection Oven is a high-performance, programmable unit designed for precision, safety, and convenience in demanding laboratory and industrial environments. With a spacious 450-liter chamber, this oven provides reliable and uniform heating up to 200°C.

Intelligent Programmable Control (OF3-P Model) Take full command of your heating processes with our intuitive programmable controller.

• Color Touch LCD Display: A user-friendly interface with clear icons and logical menus simplifies operation.
• Advanced Programming: Create and store up to 10 distinct programs, each with up to 10 steps for detailed temperature ramp-up and dwell control.
• Extended Timing: Each step can be programmed for up to 99 hours and 59 minutes, with the ability to repeat programs for up to 99 cycles.
• Program Linking: Easily link stored programs to create complex, extended thermal profiles.
• Pre-heat Function: Set pre-heating and heating times before a program begins to ensure your samples are processed efficiently.

Superior Performance & Efficiency Engineered for rapid and uniform heating, ensuring consistent results every time.

• Rapid Heating: Reaches a maximum temperature of 200°C quickly and efficiently.
• Precision Control: A microprocessor PID controller, along with three-point temperature calibration and automatic tuning, maintains exceptional temperature stability (fluctuation of ±0.2°C at 100°C) and uniformity (variation of ±2.2°C at 100°C).
• Optimal Air Circulation: Two powerful yet noiseless sirocco fans create forced air convection, guaranteeing optimal heat distribution and short heat-up times throughout the chamber.
• Optimized Insulation: A highly efficient insulation system minimizes heat loss, ensuring the oven's exterior surface remains cool to the touch for enhanced safety and reduced energy consumption.

Designed for User Convenience Every feature is crafted to make your workflow smoother and more efficient.

• Dual Timers: Features dual wait on/off timer modes (1 min. to 99 hr. 59 min.).
• Preset Temperatures: Conveniently save and recall your three most commonly used temperature settings.
• Easy Maintenance: The chamber features rounded corners for easy cleaning and optimal airflow, while the stainless steel interior and corrosion-resistant Incoloy heating element ensure long-term durability.
• Data & Control: A USB port and RS-232 port are included for remote external control and easy data collection.
• Mobility: Comes equipped with heavy-duty casters for easy mobility during installation or relocation.

Uncompromising Safety Features Built-in protections to safeguard your work, your lab, and your team.

• Keypad Lock: Prevents accidental changes to settings during operation.
• Power Interruption Recovery: The oven automatically resumes operation after a power failure.
• Protection Systems: Equipped with over-temperature and over-current protection.
• Alarms: Audible and visible alarms alert the user if the door is left open.

Specifications

• Chamber Volume: 450 L / 15.9 cu ft
• Temperature Range: Ambient +15°C to 200°C / Ambient +27°F to 392°F
• Temperature Fluctuation (at 100°C): ±0.2°C / ±0.36°F
• Temperature Variation (at 100°C): ±2.2°C / ±4.0°F
• Internal Dimensions (W×D×H): 645 × 750 × 930 mm / 25.4 × 29.5 × 36.6 in
• External Dimensions (W×D×H): 850 × 1100 × 1525 mm / 33.5 × 43.3 × 60 in
• No. of Wire Shelves (Standard): 2
• Max. Load per Shelf: 25 kg / 55.1 lbs
• No. of wire shelf (standard / max.)   3  /  8
• Net Weight: 240 kg / 529.1 lbs
• Electrical Requirements: 380V, 50Hz, 3-Phase, 6.7A

Optional

• Viewing Window: A threefold tempered-glass window can be added to the door for a clear view of the chamber's interior without disrupting the temperature.
