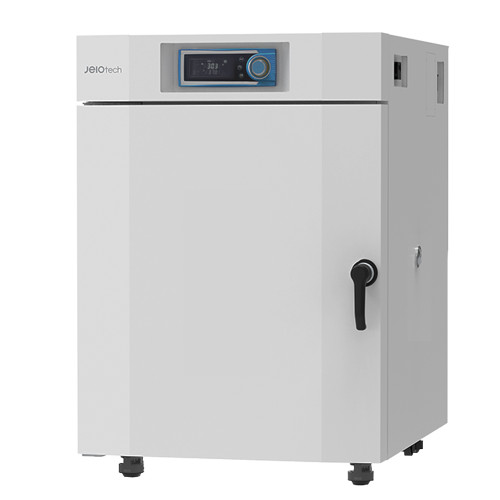

OF3-30 Large Forced Convection Oven, Solid Door, 314L, 230V

OF3-30 Large Forced Convection Oven: Precision, Performance, and Simplicity

Experience unparalleled temperature control and performance with the OF3-30 Large Forced Convection Oven. With a spacious 314-liter (11.1 cu ft) chamber, this unit is engineered for demanding laboratory applications requiring rapid heating, exceptional temperature uniformity, and reliable operation up to 200°C.

Intuitive Control and Operation

The OF3-H model is designed for simplicity and quick control.

• User-Friendly Interface: Features a bright VFD display that shows set and present values simultaneously, paired with a quick-adjustable dial knob for effortless setting adjustments.
• Convenient Presets: Save time with a convenient presetting function for your three most commonly used temperature settings.
• Advanced Timers: Utilize the dual wait on/off timer modes (from 1 min. to 99 hr. 59 min.) for automated operation cycles.

Superior Performance and Efficiency

Engineered for optimal results, the OF3-30 delivers consistent and rapid heating.

• Forced Air Convection: Two powerful yet noiseless sirocco fans ensure optimal air circulation throughout the chamber, providing outstanding temperature uniformity (±2.0°C at 100°C) and minimizing heat-up times.
• Precision Control: Advanced microprocessor PID control, three-point temperature calibration, and automatic tuning capabilities guarantee precise and stable temperature management (fluctuation of ±0.2°C at 100°C).
• Energy-Efficient Design: A highly optimized insulation system ensures energy efficiency, keeping the exterior surface safe to touch even when operating at maximum temperature. Adjustable dual slide vents allow for precise control over inner vapor circulation.

Built for Convenience and Durability

Every component is designed for ease of use and long-term reliability.

• Easy Maintenance: The chamber features rounded inner corners for easy cleaning and optimal airflow. The interior is constructed from corrosion-resistant stainless steel, complemented by a durable incoloy sheath heating element.
• Mobility and Monitoring: Casters are included for easy mobility and relocation. For advanced monitoring, the unit includes a USB port and RS-232 port for external control and data collection. It is also compatible with the LC Connected mobile monitoring system (requires LC GreenBox), allowing you to check on your processes anytime, anywhere.
• Clear Observation: A threefold tempered-glass window is available as an option to provide a clear view of the chamber's interior without disrupting the thermal environment.

Uncompromising Safety Features

The OF3-30 is equipped with multiple safety mechanisms to protect your samples and your lab.

• System Protection: Features include a keypad lock function to prevent accidental changes, over-temperature and over-current protection, and an automatic run function after a power interruption.
• Alarms: Audible and visible alarms for open doors ensure operational integrity.

Specifications

• Chamber Volume: 314 L / 11.1 cu ft
• Temperature Range: Ambient +15°C to 200°C / Ambient +27°F to 392°F
• Temperature Fluctuation (at 100°C): ±0.2°C / ±0.36°F
• Temperature Variation (at 100°C): ±2.0°C / ±3.6°F
• Interior Dimensions (W×D×H): 645×750×650 mm / 25.4×29.5×25.6 in
• Exterior Dimensions (W×D×H): 850×1100×1235 mm / 33.5×43.3×48.6 in
• No. of Shelves (Standard / Max): 2  /  5
• Max. Load per Shelf: 25 kg / 55.1 lbs
• Net Weight: 200 kg / 440.9 lbs
• Electrical Requirements: 230V, 50/60Hz, 1P, 13.2A
