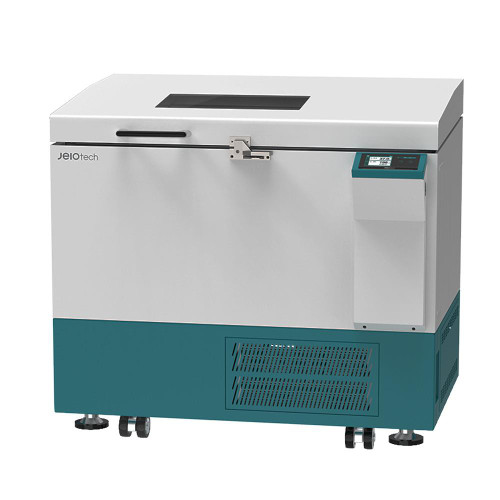

ISF-7200 Orbital Floor Model Incubator Shaker

ISF-7200 Orbital Floor Model Incubator Shaker: High-Capacity Performance and Precision

The ISF-7200 is a robust, high-performance orbital incubator shaker designed for demanding, large-scale applications in microbiology, cell biology, and molecular biology. Engineered for reliability and precision, this floor model unit provides a stable and uniform environment for consistent, reproducible results, even under heavy workloads.

Key Features and Benefits:

Exceptional Performance and Control

• Wide Temperature Range: Operates from ambient +5°C up to 80°C, accommodating a broad spectrum of applications from bacterial cultures to extremophile studies.
• Powerful Orbital Shaking: Features a vigorous 50.8mm orbital shaking motion with an impressive speed range from 30 to 300 rpm, controlled by a maintenance-free Direct Drive brushless motor. This advanced system guarantees quiet operation and powerful torque for smooth, stable shaking of heavy or unbalanced loads.
• Intelligent Speed Management: The "Best Effort Run" function automatically adjusts RPM to maintain continuous operation, preventing shutdowns caused by load imbalances or external vibrations. Smooth start and stop functions minimize the risk of spills.
• Precision Temperature Control: A microprocessor PID controller, along with a three-point calibration system, ensures exceptional temperature accuracy and uniformity throughout the chamber. The high-velocity fan provides rapid temperature recovery after door openings.

User-Centric Design and Convenience

• Intuitive Touchscreen Interface: A modern LCD touchscreen with clear icons and logical menus simplifies programming of temperature, speed, and timer settings (up to 999 hours).
• Effortless Sample Monitoring: The gas-spring-assisted lid features a large, transparent viewing window and internal LED lighting, allowing for clear sample observation without disrupting the internal environment.
• Automated Workflow Integration: The platform is designed to stop in the same position every time, making it ideal for automated dosing or sampling procedures.
• Durable and Easy to Maintain: The interior is constructed from corrosion-resistant stainless steel, and an easy-access drain with a quick-disconnect valve makes cleaning up spills simple and efficient.

Advanced Safety and Sustainability

• Comprehensive Safety Protocols: Your samples are protected by a triple independent temperature monitoring system, alarms for temperature and speed deviations, over-current protection, and an automatic restart function after a power failure.
• Eco-Friendly Design: Models with refrigeration (ISF-7x00R series) utilize R-600a refrigerant to minimize environmental impact and greenhouse gas emissions.
• Secure Sample Storage: An air-tight silicone door seal and a lockable door ensure the integrity and security of your valuable samples.

Connectivity and Compliance

• Data Management: Built-in RS-232 and USB ports allow for external control and data collection.
• Remote Monitoring: Stay connected to your experiments from anywhere with the optional LC Connected mobile monitoring system.
• GMP/Audit Ready: The unit can be integrated with the optional 21 CFR Part 11 compliant LC DataKeeper for full data traceability, making it suitable for regulated environments.

Technical Specifications: Model ISF-7200

• Chamber Volume: 270 L (9.5 cu ft)
• Temperature Range: Ambient +5°C to 80°C
• Temperature Fluctuation (at 37°C): ±0.1°C
• Temperature Variation (at 37°C): ±0.5°C
• Shaking Motion: Orbital
• Shaking Amplitude: 50.8 mm (2.0 in) diameter
• Shaking Speed Range: 30 to 300 rpm
• Maximum Permissible Load:
  • Up to 300 rpm: 20 kg (44.1 lbs)
  • Up to 200 rpm: 35 kg (77.2 lbs)
• Platform Dimensions (W x D): 755 × 520 mm (29.7 × 20.5 in)
• Exterior Dimensions (W x D x H): 1128 × 854 × 1035 mm (44.4 × 33.6 × 40.8 in)
• Net Weight: 277 kg (610.7 lbs)
• Electrical Requirements (120V, 60Hz): 7.3A
