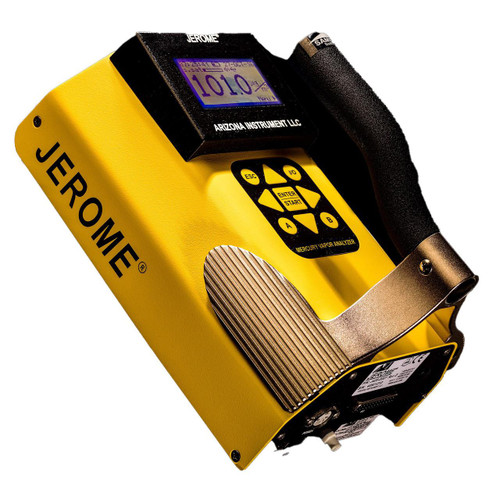

Jerome J405 Gold Film Mercury Vapor Analyzer
The Jerome J405 portable mercury vapor monitor sets a new standard in the mercury vapor analyzer market. Featuring industry-proven gold film sensor technology and straightforward one-button operation, it delivers reliable and stable performance.
With enhanced capabilities and modern communication features, the J405 is ideal for mercury spill detection and clean-up analysis. Its ergonomic handle, lightweight design, and improved sensitivity (detecting levels as low as 0.5 µg/m3) make it a highly portable and user-friendly tool for low-level mercury detection.
Features
- Sensitive: Detects mercury vapor at levels as low as 0.5 µg/m³, making it ideal for industrial and residential cleanup.
- Trusted: Backed by over 35 years of proven performance, Jerome instruments are the gold standard for mercury detection.
- Durable: Built with a rugged metal housing, the J405 is tough enough for any environment.
- Reliable: Provides up to 24 hours of battery life per charge, ensuring it’s ready when you are.
- Advanced: Equipped with onboard data logging for up to 20,000 measurements, USB data transfer, and SCADA interface capabilities via 4-20mA output.
- Precision: Offers ultra-low level detection with a resolution of 0.01 µg/m³, ensuring highly accurate results.
- Gold Film Sensor: Our proprietary gold film sensor, trusted for over 35 years, delivers consistent, repeatable results.
- Versatile: Used globally by environmental agencies, industrial hygienists, miners, and first responders.
- Regulatory Compliance: Meets and exceeds EPA, ATSDR, OSHA, NIOSH, ACGIH, and MSHA standards with its lower detection limit of 0.5 µg/m³.
- Data Logging Option: Stores data for up to 20,000 samples, including timestamps and location tracking for up to 80 areas.
- Survey Mode: Continuously samples air to help pinpoint mercury contamination sources for effective corrective action.
- Field Ready: Features battery-powered sensor regeneration, allowing extended testing on-site without downtime.
- User-Friendly: Intuitive menu-driven interface with simple diagnostics and error detection—no PC software required.
- Portable: Lightweight, ergonomic design housed in a durable metal casing for easy use in the field.
Specifications
Detection Range: 0.5 µg/m3 – 999 µg/m3
Resolution: 0.01 µg/m3 (0.00001 mg/m3)
Accuracy:
±10% at 1.0 µg/m3
±5% at 25 µg/m3
±5% at 100 µg/m3
Response Time: Sample Mode: 16 seconds
Survey Mode: 2 seconds
Flow Rate: 750 ± 50 mL/min
Result Units: µg/m3, mg/m3
Autosample Intervals: 1, 2, 5, 10, 15, 30, 45, 60, 90 or 120 minutes
Optional Integrated Data Storage: 20,000 test results; retains date, time and up to 80 locations
Display: 3.5″ (9 cm) backlit LCD
Battery: Rechargeable NiMH 24 hour life, charges in 3 hours
Power Requirements: 12 VDC for the instrument; 100-240 VAC, 47-63 Hz, 1.3 A for the AC power supply
Fuse: Auto-resetting fuse
Operating Environment: 0°C to 45°C, non-condensing, non-explosive
Output: Digital: USB serial data to PC, printer or USB flash drive
Analog: 4-20 mA passive current loop; accurate to 0.3% of output
Dimensions: 11″ L x 6″ W x 6.5″ H (28 cm L x 16 cm W x 17 cm H)
Weight: 5.3 lbs. (2.4 kg)
Analog: 4-20 mA passive current loop
Warranty: 1 year, factory parts and labor
Certifications: TUV 61010, CE
