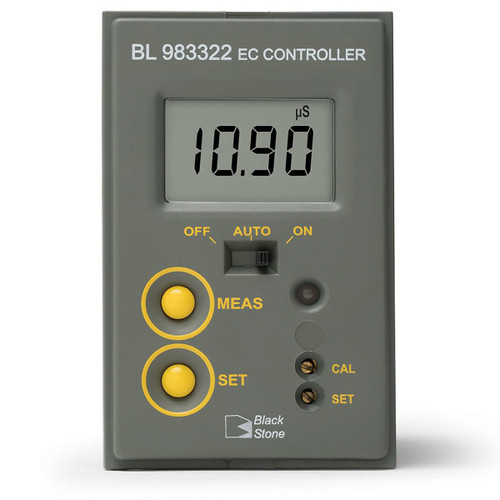

The Hanna Instruments BL983322-0 Conductivity Controller is a must-have for those managing process streams where measuring electrolytic conductivity is important. It provides users with a compact and panel-mounted controller for measuring conductivity levels from 0.00 to 19.99 μS/cm. Its large LCD display comes with a protective cover to ensure durability and ease of use.
The device also features automatic or manual dosing modes, giving users flexibility in the way they use the device. The BL983322 can be used to activate a solenoid that switches from one DI tank to another or open a valve that will allow lower EC water to flow into a tank, reducing its conductivity level.
With its multicolor LED indicator, fire-retardant casing, and automatic temperature compensation from 5 to 50°C (41 to 122°F) with ß =2%/ºC, the BL983322 is designed for accuracy, safety, and reliability at all times. Its calibration is also manual, with a CAL trimmer providing users with maximum control over the device's accuracy.
The BL983322 also comes with a dosing relay with a closed contact when measuring above the setpoint. This relay is fuse-protected and can handle a maximum of 2A, 250 Vac, and 30 VDC contacts. The setpoint is adjustable up to 19.99 μS/cm, and the device also features an adjustable overtime from 5 to approximately 30 minutes.
With dimensions of 83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’) and a weight of 200 g (7.1 oz.) for the "models -0," and 300 g (10.6 oz.) for "models -1", the BL983322 is compact enough to fit into any process stream. It is also easy to install with its included mounting brackets, transparent cover, and instruction manual.
The recommended probe for use with this device is the HI7634-00 EC/TDS probe with an internal temperature sensor and 2m (6.6’) cable, which is not included.
Overall, the Hanna Instruments BL983322-0 Conductivity Controller is a reliable and accurate device for measuring electrolytic conductivity in process streams. Its compact size, automatic dosing modes, LED indicator, and setpoint adjustment make it a convenient and user-friendly device for anyone managing process streams.
