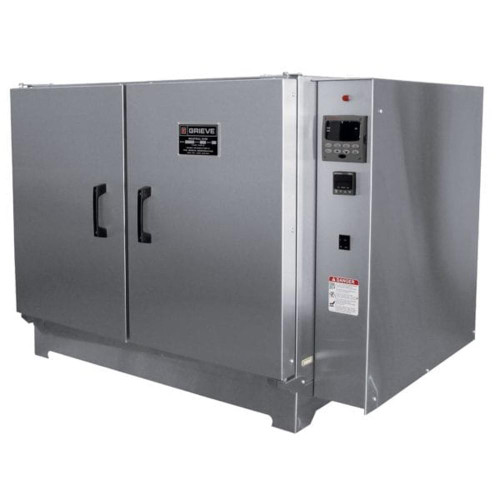

Grieve NT-1000R Hi Temp Oven, Forced Convection, 1000F, 4.3 cu ft
The Grieve NT-1000R is a high-temperature oven designed for efficient forced convection heating up to 1000°F. With a spacious 4.3 cubic feet capacity, it provides reliable performance for various industrial applications. Ideal for processes requiring precise temperature control, this oven ensures even heat distribution, making it a valuable tool for laboratories and manufacturing environments.
Standard Features for High Temperature Bench Ovens
Safety Equipment- All of our high temperature bench ovens come equipped with safety features to ensure the protection of both your workers and the oven itself. These include an emergency shut-off switch, overheat protection, and a reinforced door with heat-resistant glass.
Temperature Control
Our high temperature bench ovens offer precise temperature control for consistent and accurate results. A digital control panel allows you to easily adjust the temperature and monitor it throughout the heating process.
Durable Construction
Made from heavy-duty materials, our high temperature bench ovens are built to withstand extreme temperatures and everyday use. The exterior is made of sturdy steel while the interior is lined with durable insulation to maintain heat and prevent any damage to the oven's components.
Versatility
- Meets the Requirements of the Following Standards:
- NFPA 86 (Standard for Ovens and Furnaces)
- NFPA 70 (National Electric Code)
- OSHA
- Caution:
- When processing combustible material fire protection should be considered
- Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
- Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
- Separate heating element control contactors to turn off heat on malfunction of main control contactors
Controls
-
Analog non-indicating temperature controller
-
Red pilot light to indicate heater operation
-
On-Off switch
Construction
-
115 volt, 208 volt, 230 volt or 460 volt, 1-phase, 50-60 HZ- other input power available
-
3-wire cord with plug on 115 volt models requires 30 ampere 115 volt service
-
3-wire cord only on 208 and 230 volt models
-
460 volt models incoming power hardwired to control panel
-
Durable, electrically isolated, Incoloy tubular heating elements
-
Shelves adjustable on 2” centers
-
Stainless steel shelves on 1000⁰F models
-
Insulated with 6 lbs per cubic foot density rockwool insulation
-
304 stainless steel interior with plated hardware
-
Brushed stainless steel exterior
-
Fiberglass door gasket with stainless steel spring insert
-
Fully assembled and factory tested
-
1 year limited warranty
MODEL NTR-1000
MAXIMUM OPERATING TEMP 1,000°F
AIR FLOW Bottom to Top, Forced Convection
CONTROL ACCURACY ± 0.5%
OVEN UNIFORMITY ± 20°F
RISE TIME - ELECTRIC 95 mins
RISE TIME - GAS Not Rated
WORKS SPACE DIMENSIONS (WxDxH) 26" x 22" x 13"
SHELVES INCLUDED 2
NUMBER OF SHELVES MAX 6
SHELF CAPACITY 20
MAX LOAD CAPACITY Not Available
DOORS Manual
LOADING METHOD Shelf
APPROXIMATE SHIP WEIGHT 335 lbs
OUTSIDE DIMENSIONS (WxDxH) 41.5" x 35" x 31"
Additional Shelf (sold separately) V094.SHLFNT1
