Grieve Model 343, Hi-Capacity Bench Oven, 36.0cf, 1 Phase, 208V

Price $14,760.00
upsell:
/stand-kit-for-grieve-ovens/
upsell:
/extra-shelf-for-grieve-ovens/
upsell:
/operation-timer-for-grieve-ovens/
Oven Max Temperature:
204C/400F
Oven Chamber Size:
36.0 cu.ft. / 1019 L
Condition:
New
Minimum Purchase:
1 unit
SKU:
V094.BO-343A

Estimated ship in 10-12 weeks | This ships Freight
* Estimate is for US customers only.
* Shipping and Import Duties are calculated at checkout.
See Product Information

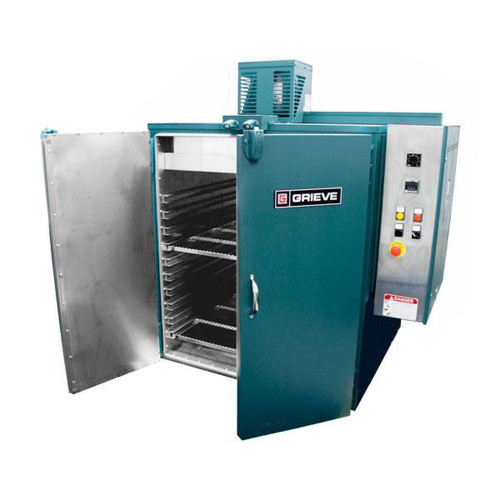

The Grieve Large, Hi-Capacity Bench Oven offers unusually-high capacity at a budget price. This forced convection electric bench oven operates to 204°C (400°F) with ±0.5% control accuracy and ±4°C (±8°F) uniformity for efficient drying of large sample loads. Oven may be used on the bench or ordered with a 24in (610mm) high Stand Kit for most convenient working height. Two 50lb (23kg) capacity nickel-plated wire shelves adjust to fit any of ten support channels on 3in centers; order extra shelves as needed. This smaller model is designed to fit through a 30in (762mm) wide door.

The Large, Hi-Capacity Bench Oven has double doors and 2in (51mm) rockwool insulation between carbon steel walls with type 430 stainless steel interior and enameled exterior. The UL-listed side access control panel has an analog solid state, thermocouple-actuated temperature controller, blower control pushbuttons, on/off heat switch, adjustable over-temperature controller, and pilot lights. Heater shuts off if blower fails, and the 1/3hp blower can be run without the heater for cooling. Adjustable air intake and exhaust dampers are provided. Construction includes explosion venting latches, silicone rubber door gaskets, and incolloy-sheathed tubular heating elements with built-in baffle to prevent radiant heat.

Overall Dimensions: 49"x55"x57"(WxDxH, in)

Chamber Dimensions: 36"x48"x36"(WxDxH, in)

Chamber Capacity: 1019 Liters/36cft

Max Temperature: 204°C (400°F)

Electrical: 230V/60Hz/1-Ph.
