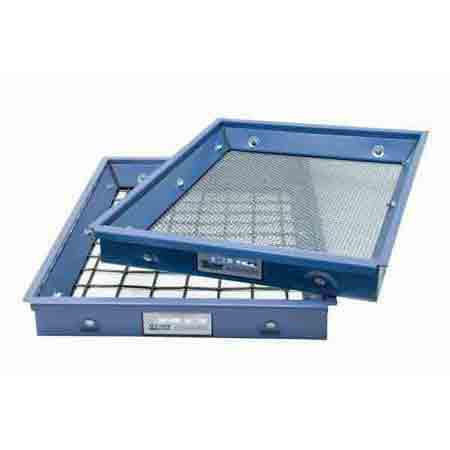

Gilson Testing Screen and Test-Master Tray, 6.3mm

ISO Testing Screen & Test-Master® Trays

The ISO Testing Screen & Test-Master Trays for Gilson's Testing Screen and Test- Master Screen Shakers feature a complete range of sizes from 125.0mm to 38µm in ISO 3310/565 Compliance Grade cloth. Mesh for openings finer than 4.00mm is stainless steel, and plain steel is used for openings 4.75mm and coarser. All Trays are serial numbered, and a certificate of performance is included with each.

Supporting ribs beneath the cloth of Trays with openings from 1.18mm to 75µm prevent sagging and stretching. Trays with cloth finer than 63µm use No.4 stainless steel Backing Cloth for full support in place of ribs.

These screen trays are 18" x 26" (457 x 660mm) in size and designed for use with models Gilson Testing Screen Shakers and the Gilson Test-Master Screen Shakers.

6.3 millimeter full ISO Testing Screen Trays feature welded and bolted heavy gauge painted steel construction and are fitted with ISO 3310/565 Compliance Grade wire cloth.

Features:

• Meets ISO 3310/565 wire cloth specifications
• Rugged steel Screen Trays are designed for use in Gilson Testing Screen and Test-Master^® models

Included Items:

• 6.3mm Test Screen Tray
• Serial Number
• Compliance Grade ISO 3310/565 wire cloth

Specifications

• Tray Type: Full Tray
• ISO 565, 3310-1 Opening Size: 6.3mm
• Cloth Material: Stainless Steel
• Estimated Shipping Weight: 18.0lb (8.16kg)

The Gilson TSA-100 6.3M ISO 6.3mm Test Screen Tray with Cloth is specifically designed for use with Gilson Testing Screen Shakers and the Gilson Test-Master Screen Shakers. This product features a complete range of sizes from 125.0mm to 38µm in ISO 3310/565 Compliance Grade cloth, ensuring accurate and reliable testing results.

One of the key features of this tray is the support ribs located beneath the cloth. These ribs prevent sagging and stretching in trays with openings ranging from 1.18mm to 75µm. For trays with cloth finer than 63µm, a No.4 stainless steel Backing Cloth is used for full support instead of ribs. This ensures the longevity and durability of the trays even under continuous and rigorous testing.

The Gilson TSA-100 6.3M ISO 6.3mm Test Screen Tray is constructed with welded and bolted heavy gauge painted steel, guaranteeing a sturdy and robust design. The tray is 18" x 26" (457 x 660mm) in size, providing ample space for testing various materials.

This specific tray has a 6.3mm opening size, which meets ISO 3310/565 wire cloth specifications. The cloth material used for this tray is made from stainless steel, ensuring corrosion resistance and long-lasting performance. Each tray is serial numbered, and a certificate of performance is included, validating its quality and adherence to industry standards.

The Gilson TSA-100 6.3M ISO 6.3mm Test Screen Tray with Cloth comes with all the necessary items for immediate use, including the tray itself, a serial number, and Compliance Grade ISO 3310/565 wire cloth. With an estimated shipping weight of 18.0lb (8.16kg), this product is conveniently portable and can be easily transported to different testing locations.

Whether you are performing aggregate testing, particle size distribution analysis, or any other application that requires precision and accuracy, the Gilson TSA-100 6.3M ISO 6.3mm Test Screen Tray with Cloth is an essential tool for obtaining reliable and consistent results. Invest in this high-quality tray to enhance the efficiency and effectiveness of your testing procedures.
