Gilson 8in Wet Wash Sieve, All Stainless, 8in Deep, #270

Gilson 8in Wet Wash Sieve, All Stainless, 8in Deep, #270

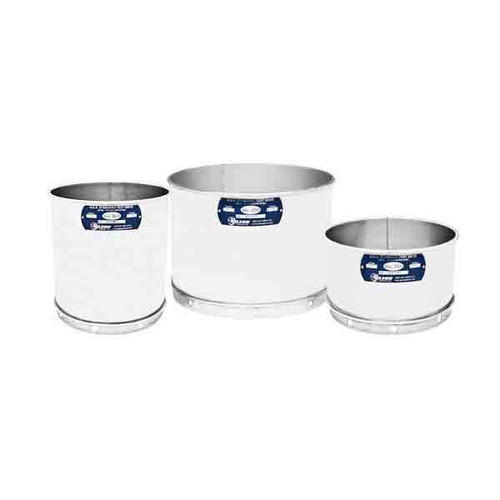

The Wet Wash Deep Frame Sieve is similar in construction to standard sieves but with extra-deep frames above the wire mesh cloth for wet testing of various materials. This makes it possible to wash the fines through the sieve without losing any of the sample.

Available with stainless stell frame and permanently installed stainless mesh cloth in sizes No. 100, No. 120, No. 140, No. 170, No. 200, No. 230, No. 270, and No. 325.  Available diameters are 12in (305mm), 8in (203mm), or 3in (76mm).

Choose diameter, depth, and mesh size above.

All sieves nest with standard pans and covers. Stocked for immediate shipment. Models with backing support cloth are also available.

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of all stainless steel with No. 270 (53µm) openings. Overall frame depth is 8in (203mm).

Features:

• Optimal for fines content determinations or sample preparation for particle size testing
• Compliant with ASTM E11
• Deep frames contain wash water
• Nesting capability with standard sieves

Included Items:

• 8in (203mm) Deep Frame Wet-Wash Sieve, All Stainless Steel, 8in (203mm) depth
• Certificate of Conformance to ASTM E11 requirements

Accessories:

• Wet Sieving Accessories - with pans, tubing, brushes, gaskets and other products used to prepare specimens for wet wash sieving
• Verification Services - provide NIST traceable documentation of opening sizes

Sieve Specifications

• Sieve Frame Diameter: 8in (203mm)
• Frame Height Above Cloth: 8in (203mm)
• Material: Stainless Steel Frame / Stainless Steel Cloth
• ASTM E11 Opening Size: No.270 (53µm)
• Backing Cloth Included: No
• Estimated Shipping Weight: 3.0lb (1.36kg)

Meets Standard(s):

• AASHTO M 92
• ASTM E11

The Gilson 8in Wet Wash Sieve is the perfect tool for wet testing of various materials. With its extra-deep frames above the wire mesh cloth, this sieve allows for the washing of fines through the sieve without losing any of the sample. Constructed with a stainless steel frame and permanently installed stainless mesh cloth, this sieve is available in a variety of sizes and mesh openings to suit your needs.

Choose from sizes No. 100, No. 120, No. 140, No. 170, No. 200, No. 230, No. 270, and No. 325, and diameters of 12in, 8in, or 3in. The 8in diameter ASTM E11 Deep Frame Wet-Wash Test Sieve, in particular, has No. 270 (53µm) openings with an overall frame depth of 8in. It complies with ASTM E11 standards, making it ideal for fines content determinations or sample preparation for particle size testing.

One of the key features of this sieve is its deep frames, which contain wash water during testing. This ensures efficient and accurate results. Additionally, all Gilson sieves are designed to nest with standard pans and covers, allowing for easy storage and transportation.

Included with the Gilson 8in Wet Wash Sieve is the all stainless steel frame with an 8in depth, as well as a Certificate of Conformance to ASTM E11 requirements. To further enhance your wet wash sieving experience, consider purchasing the Wet Sieving Accessories, which include pans, tubing, brushes, gaskets, and other products used to prepare specimens. You can also opt for Verification Services, which provide NIST traceable documentation of opening sizes.

With its high-quality construction and adherence to standards, the Gilson 8in Wet Wash Sieve is a reliable and essential tool for any laboratory or research facility. Whether you are conducting fines content determinations or sample preparation for particle size testing, this sieve will deliver accurate and consistent results. Order your Gilson 8in Wet Wash Sieve today and experience the convenience and precision it offers.
