Gilson 300mm Lab Sieves, All Stainless, Full Height, 4.75M

Gilson 300mm Stainless Steel Lab Sieve – 4.75mm, ISO Certified

Our test sieves are designed for accurate and repeatable particle size analysis for construction, pharmaceutical and food processing industries. Available in steel mesh, brass frame and perforated plate sieves we have a range of mesh sizes to suit all particle sizing applications.

Made from high quality stainless steel cloth our sieves are durable and corrosion resistant for long life. Whether you need a sieve for fine particles or larger aggregates our range of sieves will meet your needs.

300mm All Stainless Steel Mesh Full Height ISO Test Sieves

Our 300mm diameter ISO Test Sieves meet ISO 565 and 3310-1 specifications for Compliance Sieves and are in stock for immediate dispatch.

We have all ISO 565 mesh sizes available. Every ISO sieve is fitted with a rubber O-ring for a dust free seal when nested in a sieve stack. Many ISO opening sizes and tolerances are equivalent to ASTM E11 sizes.

Our ISO Sieves are available with steel frames and mesh, woven wire mesh, or brass frames with steel mesh in full height or half height sizes.

All stainless steel sieves offer long life and reduce specimen contamination. ISO Test sieves are available in full height or half height frames. Half height frames allow more sieves to be stacked.

Sample volume and particle size dictate the frame diameter and height. Material is processed more efficiently and accurately on a sieve with more surface area and less blinding.

The depth of a specimen fraction on the mesh of a sieve should not be more than a couple of particles or layers deep. The frame height should allow for proper agitation of the specimen so larger particles can reorient to the mesh surface.

Our ISO Compliance sieves come with a serial number and Compliance certificate. The certificate does not verify the measurement of an individual sieve but that the wire cloth and manufacturing process complies with ISO.

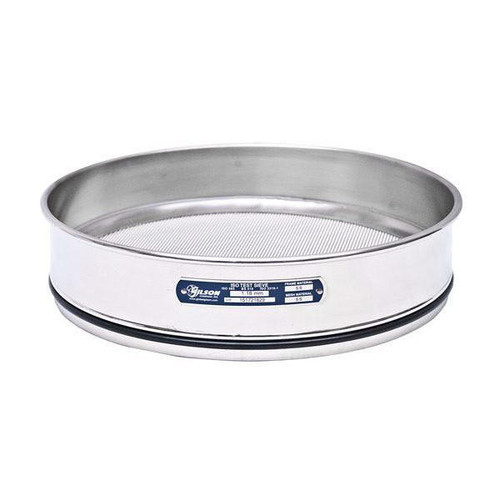

300mm diameter ISO Test Sieve has stainless steel woven-wire cloth with 4.75mm openings and full height steel frame. Each sieve is individually serial numbered. Overall height is 3in and stacked height is 2-1/2in.

Features:

• Individually serial numbered

• Compliant with ISO 565, 3310-1 requirements for Compliance Sieves

Included:

• 300mm Sieve, All Stainless, Full Height, 4.75M

• Certificate of Conformance to ISO 565, 3310-1 requirements

Accessories:

• Sieve Pans - nest underneath sieves to collect fines

• Sieve Covers - prevent sample loss during agitation

• Verification Services - NIST traceable documentation of opening sizes

• Sieve Cleaning Brushes - full recovery of specimens and sieve care

Sieve Specifications

Sieve Frame Diameter: 300mm Frame Height: Full Height Stacked Frame Height: 2-1/2in Overall Frame Height: 3in Material: Stainless Frame/Stainless Steel Cloth ISO 565, 3310-1 Opening Size: 4.75mm Backing Cloth Included: No Estimated Shipping Weight: 4.0lb (1.81kg)

The 300mm Gilson Sieve is a Compliance Sieve that meets ISO 565 and 3310-1 requirements. 300mm diameter, full height. All stainless steel.

In stock and ships today. We have a wide range of ISO 565 mesh sizes to choose from. Each sieve has a rubber O-ring to ensure a dust free seal when nested in a sieve stack.

Many of our ISO opening sizes and tolerances are also ASTM E11. The steel frames and mesh of our Gilson ISO Sieves are more durable resulting in a longer service life.

This saves you money in the long run and reduces specimen contamination. Full height and half height options available. Choose the height that’s right for your application.

Choosing the right frame diameter and height is critical to get accurate and efficient particle analysis. A larger surface area allows more material to be processed at once and reduces blinding.

The thickness of the specimen fraction on the sieve mesh should be minimal, typically no more than a couple of particles or layers deep. The frame height must allow for proper agitation of the specimen so larger particles have enough space to reorient to the mesh surface.

Our ISO Compliance sieves are serial numbered and have a Compliance certificate. While these certificates don’t verify the measurements of an individual sieve, they do verify the wire cloth and manufacturing process meets ISO requirements.

300mm diameter ISO Test Sieve. Stainless steel woven-wire cloth. 4.75mm openings. Full height stainless steel frame. Serial numbered. 3in overall height. 2-1/2in stacked height.

When you purchase the 300mm Gilson Sieve you will also receive a Certificate of Conformance to ISO 565 and 3310-1. Sieve pans, sieve covers, verification services for NIST traceable documentation of opening sizes and sieve cleaning brushes are available as options.

In summary the 300mm Gilson Sieve is a quality product that meets industry standards. Whether you need a sieve for compliance testing or particle analysis this sieve will get you accurate and efficient results.

Compliance and Certification

Our laboratory test sieves meet various international standards including ASTM E11, ISO 565 and ISO 3310-1.

We also offer certification options including NIST traceable certifications to ensure our sieves are accurate and reliable.

Our sieves are designed to meet the requirements of different industries and come with inspection certificates and norm-compliance services. So you can be sure your particle size analysis is accurate and reliable.

Applications and Features

Our test sieves are used for particle sizing in wet sieving, hand sieving and sieve analysis. Designed to get accurate and reliable results they are used in industries like construction, pharmaceuticals and food processing.

The benefits of using our test sieves are precise particle size analysis, increased efficiency and cost savings. Our sieves are built to be durable and corrosion resistant so they are a cost effective option for long term use.

Whether you are doing routine quality control or special research our sieves will give you consistent and reliable performance.

Ordering

To order our test sieves visit our website or contact our customer service. We have various types and sizes of sieves to fit different particle sizing applications. Our sieves are available in steel mesh, brass frame and perforated plate sieves.

We also have sieve covers, bottom pans and separator pans to go with our test sieves. Just let us know what you need, type and size of sieve and we will be happy to help you with your order.
