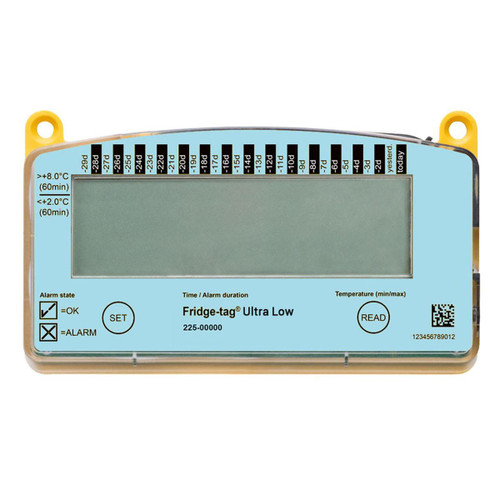

Fridge-Tag Ultra Low Data Logger, NIST Certificate of Calibration

Software-Less PDF Generation of Temperature, Alarm Data Plus Graphs

The Fridge-tag Ultra low is the intelligent temperature logger for the continuous monitoring of sensitive vaccines and pharmaceuticals stored at ultra low temperatures up to – 90°C.

If an alarm limit is exceeded, an alarm will be triggered on the display and is audible as an audio signal. A quick decision and immediate action is thus possible.

With the built-in USB connection, a secure PDF/A report with all relevant temperature data presented in a clear and easy understandable overview with temperature graph can be generated.

FEATURES:

• NIST Traceable with 2 year Certificate
• Removable Probe
• True Seal Flat Ribbon Probe Cable
• Current Temperature Display
• No Software Needed for Reporting or Computer Connection
• 30 Day Status on Screen
• Press for 30-Days of Min/Max History
• PDF report… 56 days of temperature & alarm data
• High/Low Alarm
• 43,200 Temperature Observations Monthly
• Meets FDA 21 CFR Part 11 requirements
• Accuracy ±1°F (0.5°C)
• Weekly Graphs
• 8 graphs – Each with 1 Week of Tempearture Data
  56 Days of Information
• Date in USA Format
• Date of Activation
  Give State Health Departments a warning when a device will be out of calibration
• Battery Level Indicator
  Showing Full, Middle and Low

SPECIFICATIONS:

DESCRIPTION

Electronic ultra low temperature logger with USB and external Sensor Fridge-tag device must be mounted outside of the Freezer with external sensor placed inside

MANUFACTURER’S REF

Fridge-tag Ultra Low

TYPICAL APPLICATION AREA

Monitoring of Ultra Low Temperature Freezer down to -90°C

EXTERNAL DIMENSIONS (L X W X H)

128 x 75 x 19 mm, Display 95 x 27 mm

WEIGHT

112 g

STORAGE CONDITION (INACTIVE)

0 °C to +30 °C / +32 °F to +86 °F

ONLY WITH EXTERNAL SENSOR PLACED INSIDE THE FREEZER

(Fridge-tag device must be mounted outside of the Freezer)

OPERATING TEMPERATURE

–90 to 0°C / –130 to +32°F

ALARM TEMPERATURE RANGE

–80°C to -5°C in 0.1°C increments

–112°F to +23°F

ACCURACY OF TEMPERATURE MEASUREMENT

+/- 1.5°C from –90°C to –30°C

+/- 3.2°F from –130°F to –22°F

+/- 0.5°C from –30°C to 0°C

+/- 0.9°F from –22°F to +32°F

ALARM LIMITS 2

individually programmable alarm limits

(1 upper and 1 lower alarm limit)

ALARM TRIGGER TIME

1 minute to 23 h 59 min

ALARM INDICATION

visual, optional audible (buzzer)

LOGGING INTERVAL

5 min (standard)

MEASUREMENT ACCURACY OF THE TIME

+/- 30 minutes / year

CALIBRATION

Every sensor is factory calibrated according

NIST/ILAC standard traceable. Calibration certificate on request

MEMORY SPACE 30

30 day overview on display;

PDF report length factory settable: 28, 56, 84 or 112 day overview

BATTERY

Lithium battery – complies with IATA DGR Packaging Instruction 970-Section II

PROTECTION CLASS

IP64 (external sensor not plugged in)

2D CODE ON LABEL

2D data matrix

OPERATING LIFETIME AND SHELF LIFE

Up to 3 1/2 years (1/2 year storage / 3 years useful life).

The battery status indicator on the display provides

information on the remaining lifetime.

WARRANTY

2 years from date of delivery (see general Berlinger Terms & Conditions)

MANIPULATION

Fridge-tag Ultra Low cannot be manipulated, reset or turned off without destroying it

FORMAT OF THE ORIGINAL DOCUMENT

PDF / ASCII (it can also be imported by many ERP or data management systems)

SOFTWARE FOR VERIFYING

PDF AND ASCII FILE

www.berlinger.com/verifier

JAVA™ / The software verifies the digital signature of the ASCII and PDF files.

STANDARDS CE, EMC, ROHS compliant, REACH
